Rear Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

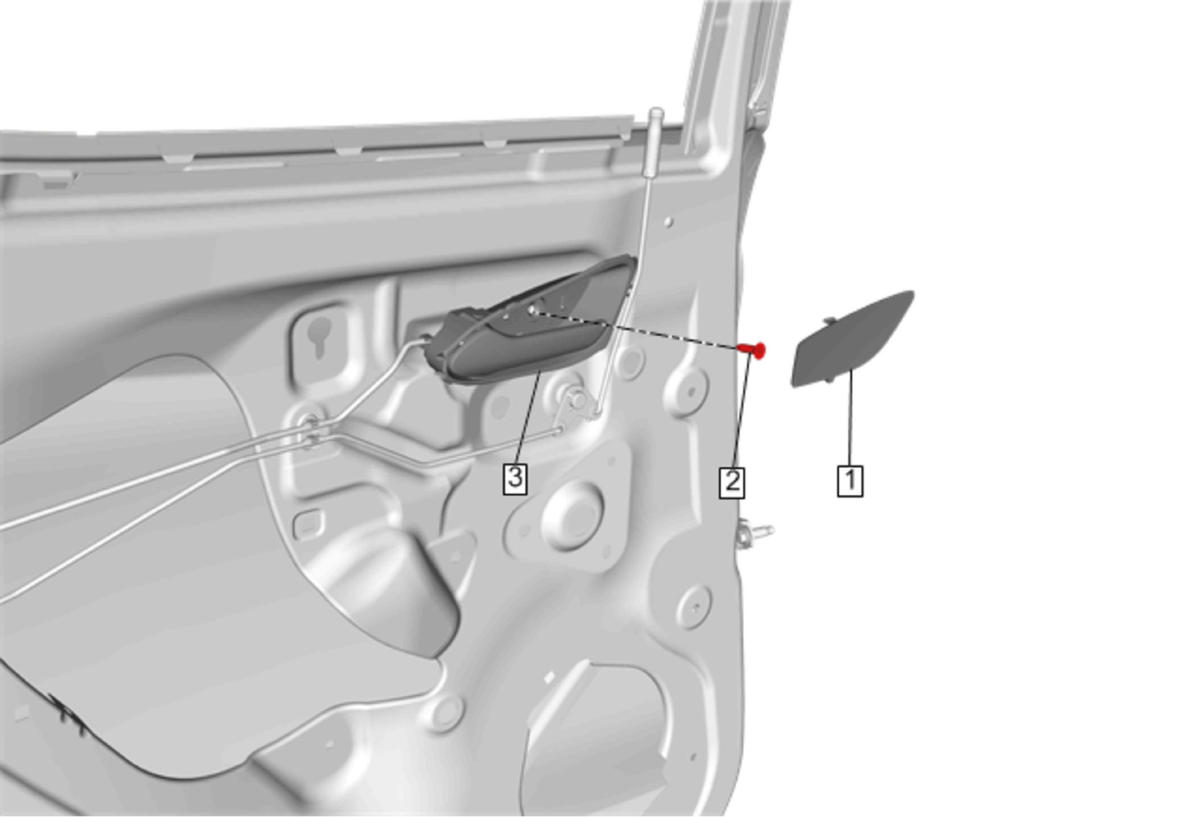

Fig 1: Rear Side Door Inside Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the water deflector. Remove the front side door inside handle rod. Refer to Rear Side Door Inside Handle Rod Replacement .
1	Rear Side Door Inside Handle Screw Cap
2	Rear Side Door Inside Handle Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
3	Rear Side Door Inside Handle NOTE: Inspect the proper operation before installing the door trim.
