Sunroof Motor/Actuator Replacement

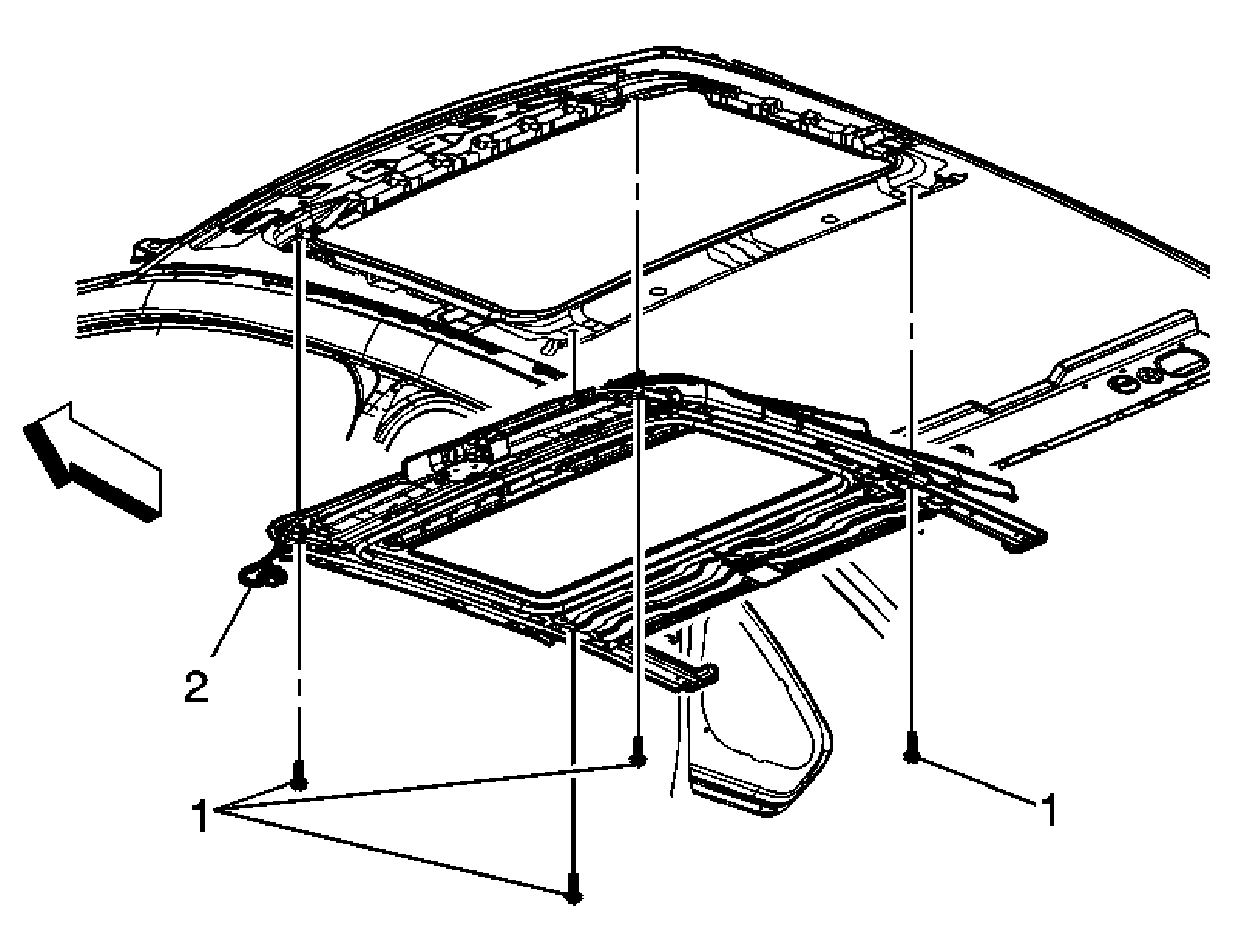

Fig 1: Identifying Sunroof Motor/Actuator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the carpet retainer. Refer to Front Carpet Retainer Replacement (Impala) or Front Carpet Retainer Replacement (Monte Carlo) . Remove the sunshade. Refer to Sunshade Replacement . Remove the pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement (Impala) or Windshield Pillar Garnish Molding Replacement (Monte Carlo) . Remove the upper center pillar. Refer to Center Pillar Upper Trim Panel Replacement . Remove the rear upper quarter trim. Rear Quarter Upper Trim Panel Replacement (Impala) or Rear Quarter Upper Trim Panel Replacement (Monte Carlo) . Remove the rear window trim. Refer to Rear Window Shelf Trim Panel Replacement . Remove the headliner. Refer to Headlining Trim Panel Replacement (Impala) or Headlining Trim Panel Replacement (Monte Carlo) . Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
1	Bolts, Module Sunroof (Qty: 4) Tighten: 10N.m (89 lb in)
2	Module, Sunroof Refer to Control Module References for programming and setup information.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Bolts, Module Sunroof (Qty: 4)

Tighten: 10N.m (89 lb in)

Module, Sunroof
Refer to Control Module References for programming and setup information.
