Front Carpet Retainer Replacement (Monte Carlo)

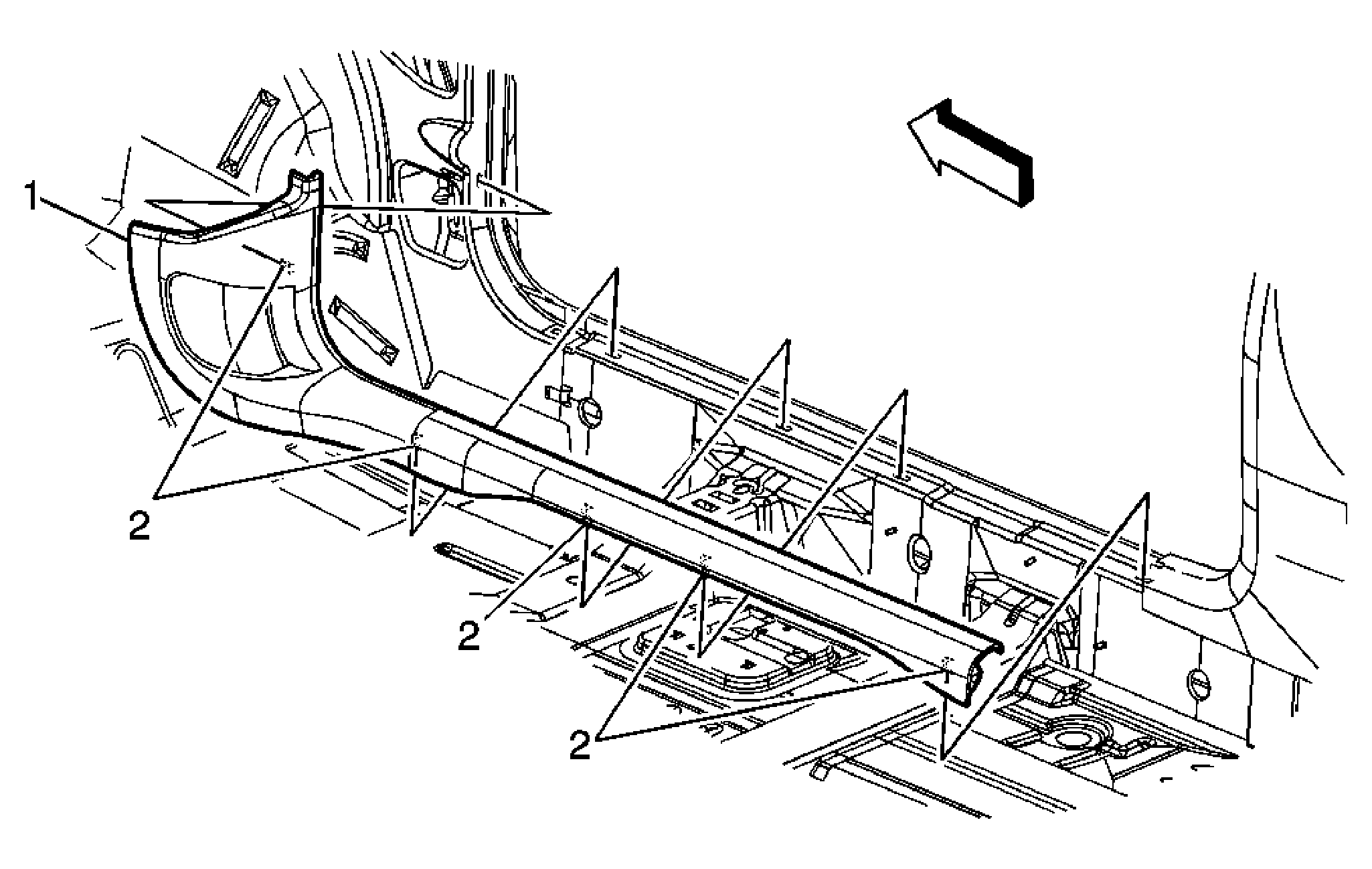

Fig 1: Replacing Front Carpet Retainer
GM1625699Courtesy of GENERAL MOTORS CORP.
Front Carpet Retainer Replacement (Monte Carlo)

Callout Component Name
1 Front Side Door Carpet Retainer Assembly
2 Front Side Door Carpet Retainer Clip (Qty: 5)
