Center Pillar Upper Trim Panel Replacement

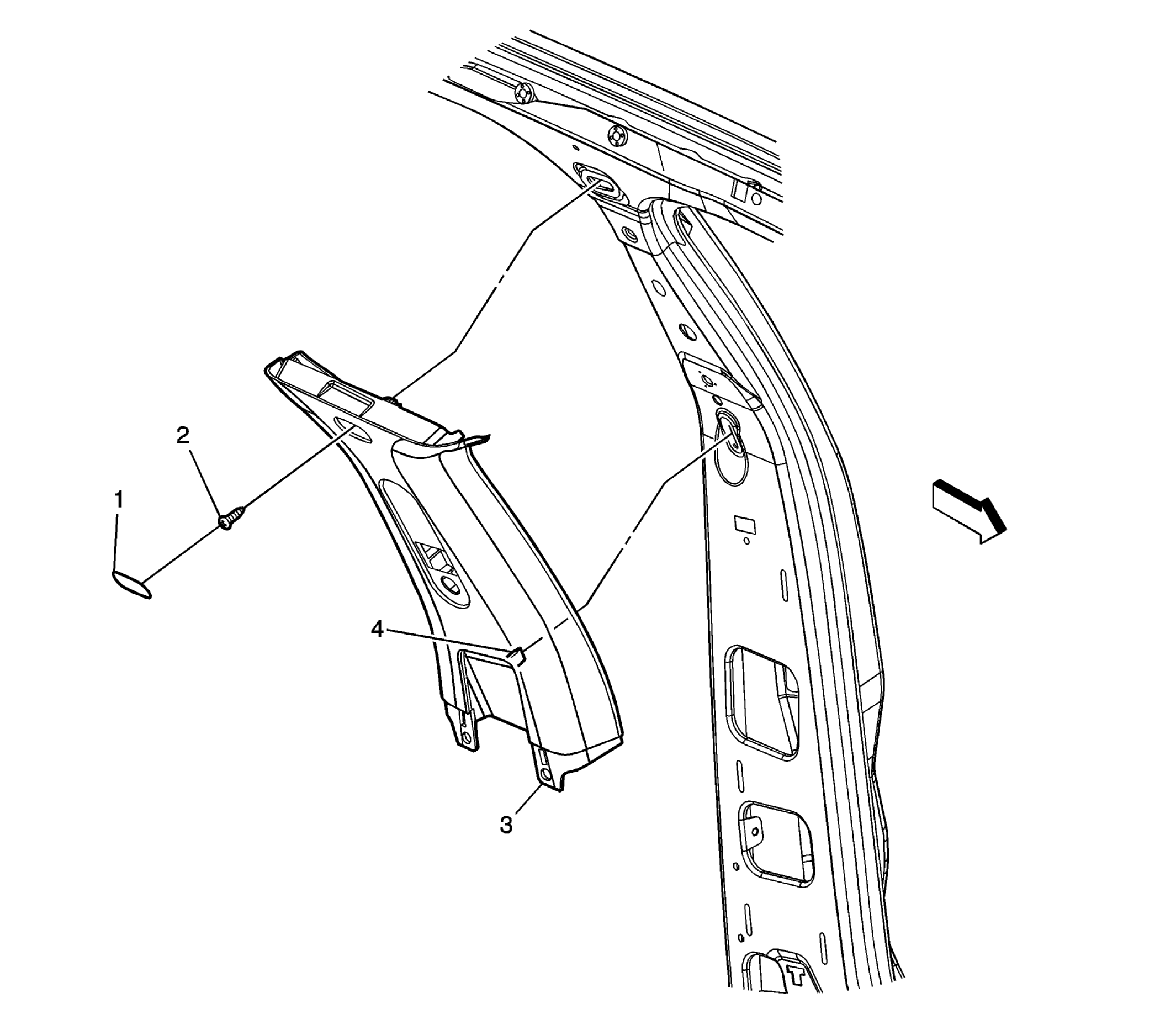

Fig 1: Identifying Upper Center Pillar Trim Panel Components
GM1602975Courtesy of GENERAL MOTORS CORP.
Center Pillar Upper Trim Panel Replacement

Callout Component Name
Preliminary Procedure:
Remove the lower center pillar trim. Refer to Center Pillar Lower Trim Panel Replacement .
1 Center Pillar Upper Trim Screw Cover
2 Center Pillar Upper Trim Screw
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
3 Center Pillar Upper Trim
Tip:
  1. Remove the seat belt D-ring from the adjuster assembly.

    Tighten:  42 N.m (31 lb ft)

  2. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
4 Center Pillar Upper Trim Clip
