Rear Window Shelf Trim Panel Replacement

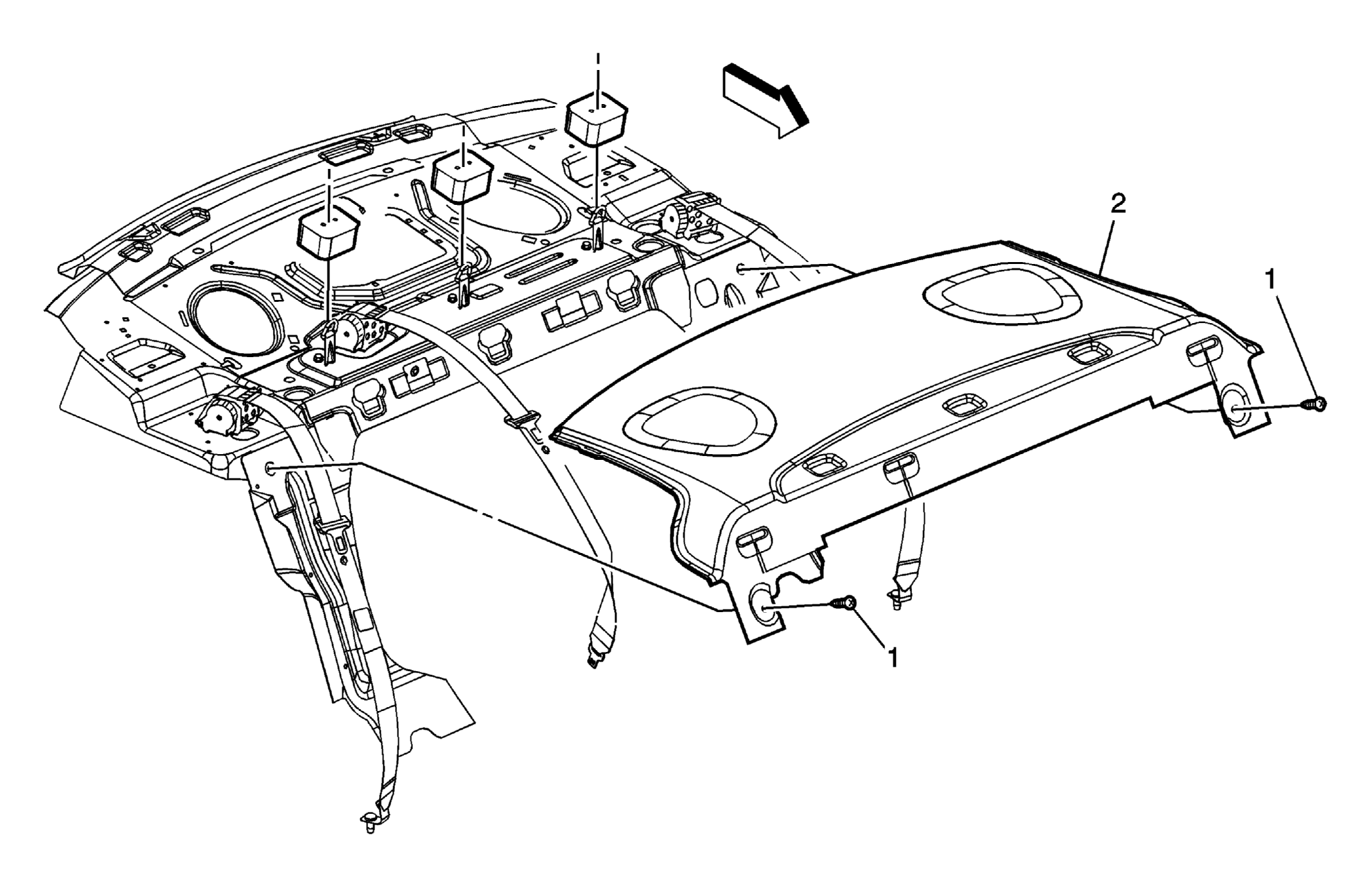

Fig 1: Identifying Rear Window Shelf Trim Panel Components
GM1613897Courtesy of GENERAL MOTORS CORP.
Rear Window Shelf Trim Panel Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Impala)  or Rear Quarter Upper Trim Panel Replacement (Monte Carlo) .
  2. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Impala) or Seat Back Replacement - Rear (Monte Carlo) .
  3. Remove the rear seat belt bolts.
1 Rear Window Trim Panel Retainer
2 Rear Window Trim Panel Assembly
