Headlining Trim Panel Replacement (Impala)

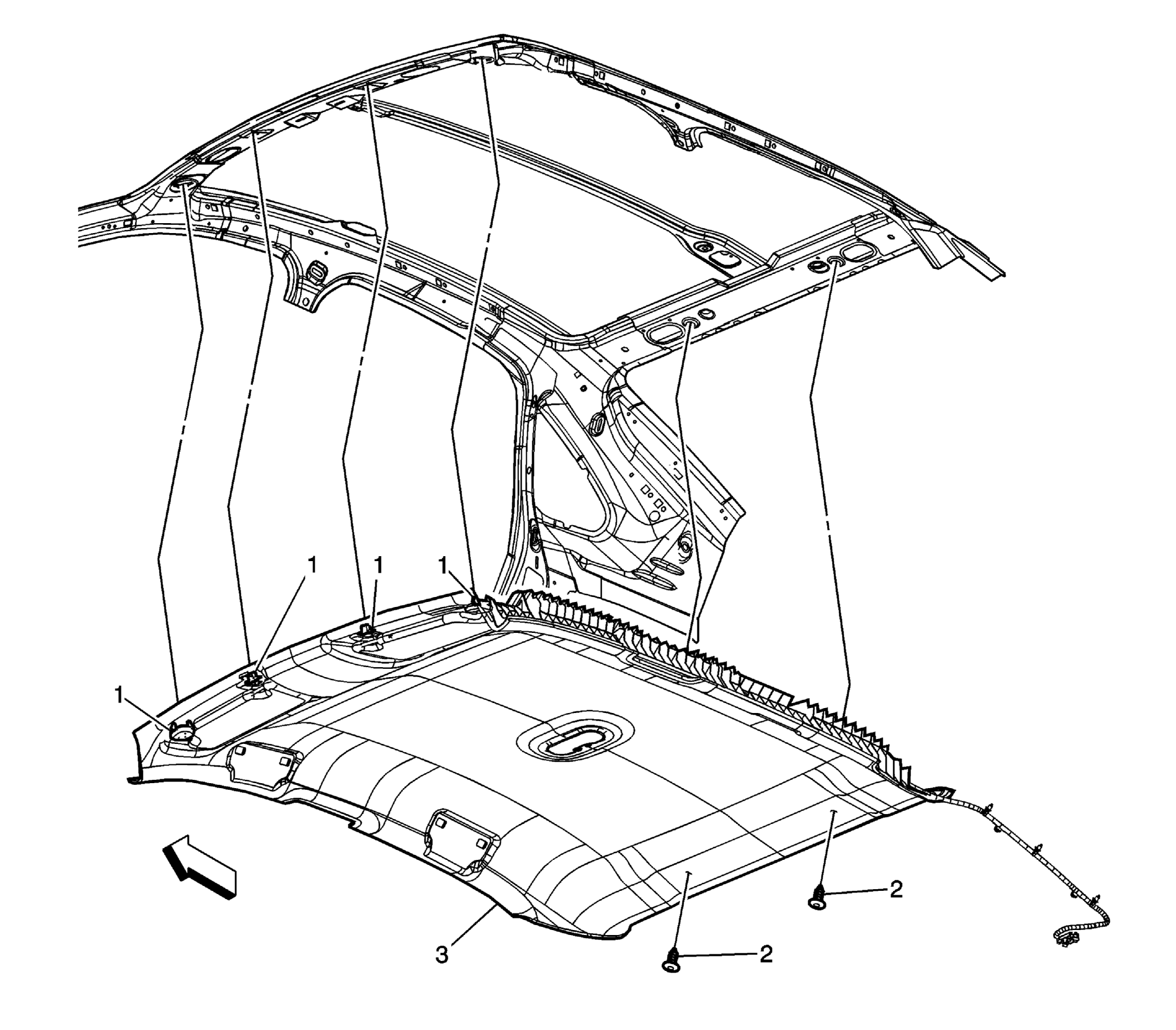

Fig 1: Replacing Headliner (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Impala) . Remove the upper center pillar trim. Refer to Center Pillar Upper Trim Panel Replacement . Remove the windshield pillar trim. Refer to Windshield Pillar Garnish Molding Replacement (Impala) . Remove the sunshades. Refer to Sunshade Replacement . Remove the sunshade anchors. Refer to Sunshade Anchor Replacement . Remove the assist handles. Refer to Assist Handle Replacement .
1	Headlining Trim Screws Tip: These screws come off with the sunshade and sunshade anchors. NOTE: Refer to Fastener Notice .
2	Headlining Trim Retainer (Qty: 2)
3	Headlining Trim Tip: Disconnect the electrical connectors. Fully recline the front seat backs. Tilt the steering wheel fully upward. Set the parking brake and put shifter in low gear. Cover the instrument panel to protect from damage. Remove through the front passenger door opening.
