Windshield Pillar Garnish Molding Replacement (Impala)

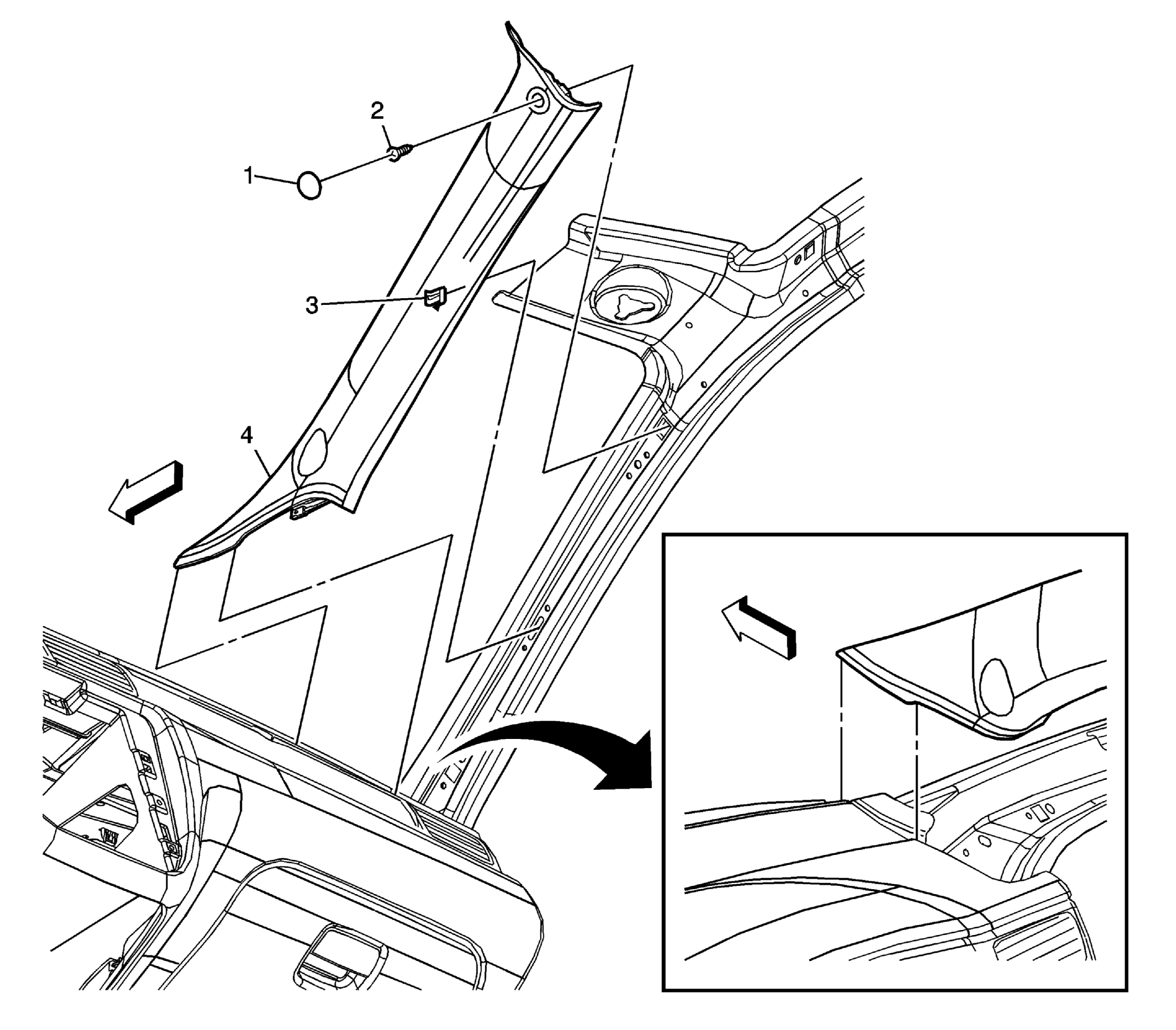

Fig 1: Identifying Windshield Pillar Garnish Molding Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel outer trim panels. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side or Instrument Panel Outer Trim Cover Replacement - Left Side . Disconnect the windshield garnish molding speaker electrical connector.
1	Windshield Side Upper Garnish Screw Cover
2	Windshield Side Upper Garnish Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Windshield Side Upper Garnish Retainer Clip
4	Windshield Side Upper Garnish Molding Assembly
