Headlining Trim Panel Replacement (Monte Carlo)
Courtesy of GENERAL MOTORS CORP. Headlining Trim Panel Replacement (Monte Carlo)

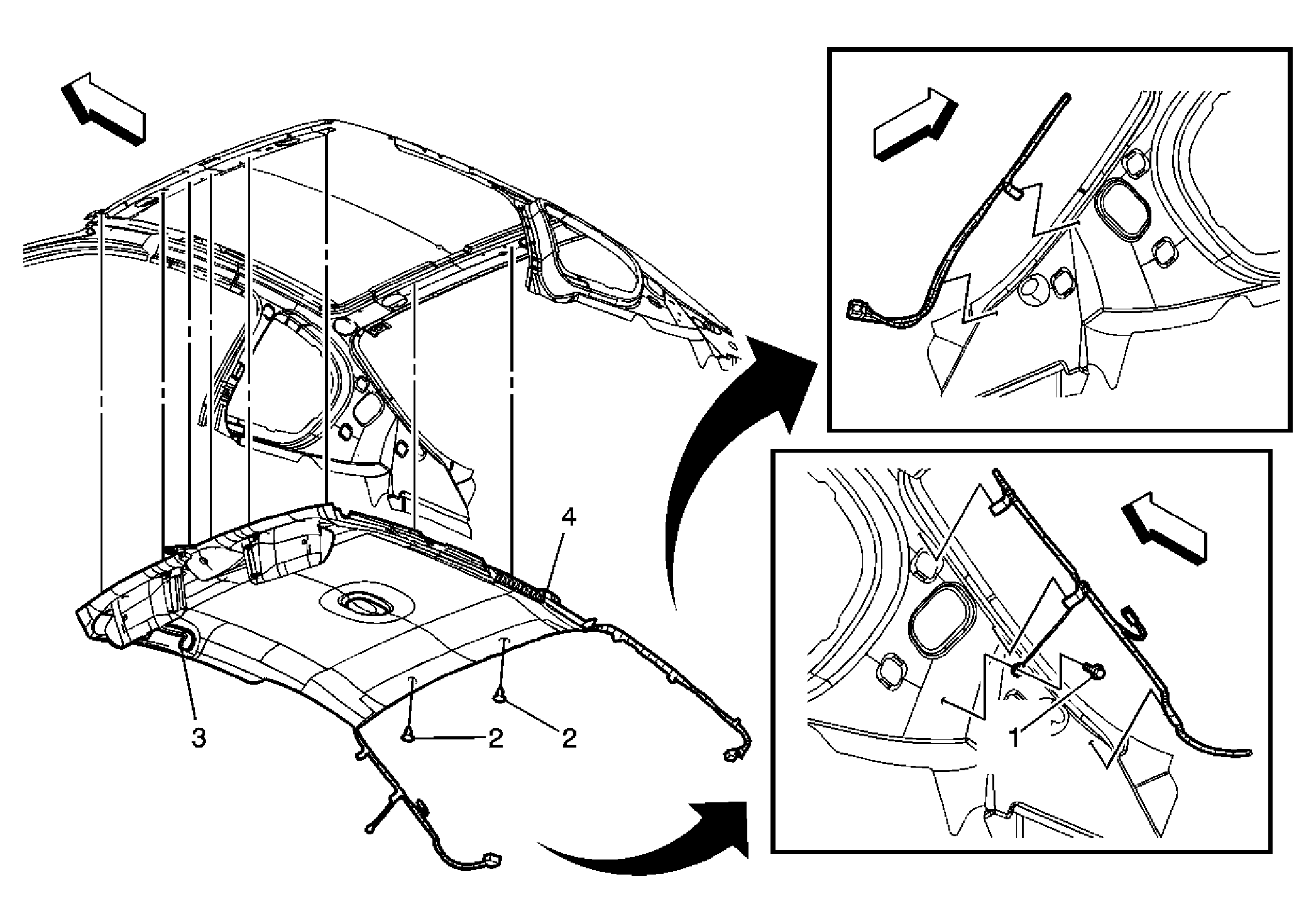

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the windshield garnish trim moldings. Refer to Windshield Pillar Garnish Molding Replacement (Monte Carlo)
.
- Remove the sunshades and the sunshade retaining clips. Refer to Sunshade Replacement
.
- Remove the upper quarter trim panels. Refer to Rear Quarter Upper Trim Panel Replacement (Monte Carlo)
.
- Remove the coat hooks. Refer to Coat Hook Replacement (Monte Carlo)
.
- Remove the weather strips around the top of each door opening.
|
| 1 |
Trim Panel Screw
Tighten:
2 N.m (18 lb in)
|
| 2 |
Headliner Trim Panel Retainer (Qty: 2) |
| 3 |
Assist Handle Retainer (Qty: 2) |
| 4 |
Headliner Trim Panel Assembly
Tip:
- Place the front seats fully forward with the seat back fully reclined.
- Disconnect the electrical connectors.
- With the aid of an assistant, remove the headliner out of the side door.
|
