Rear Quarter Upper Trim Panel Replacement (Impala)

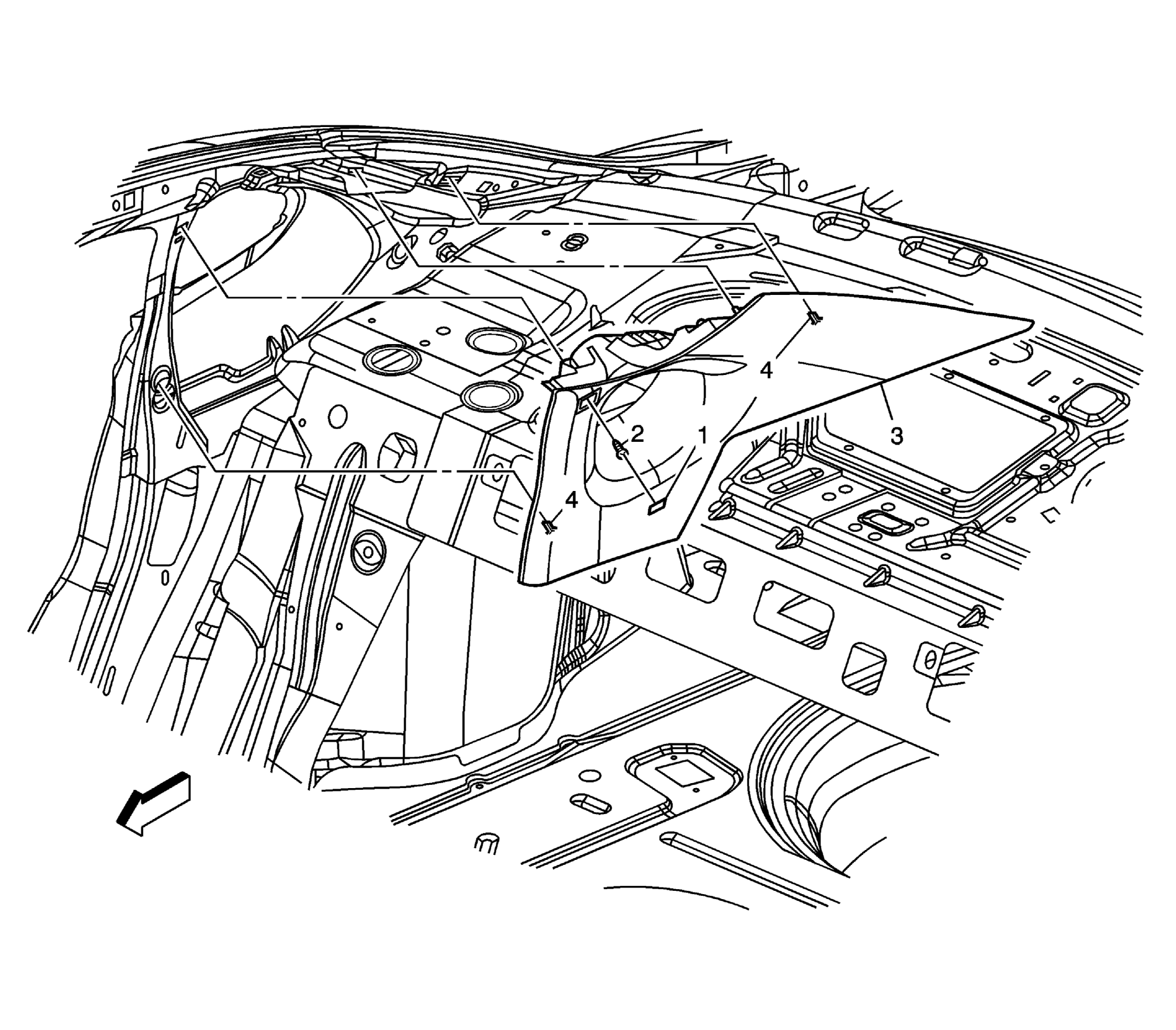

Fig 1: Identifying Rear Quarter Upper Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Rear Quarter Upper Trim Panel Replacement (Impala)

Callout	Component Name
1	Upper Quarter Upper Trim Panel Screw Cover
2	Upper Quarter Upper Trim Panel Screw NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
3	Upper Quarter Upper Trim Panel Assembly
4	Upper Quarter Upper Trim Clip
