Rear Quarter Upper Trim Panel Replacement (Monte Carlo)

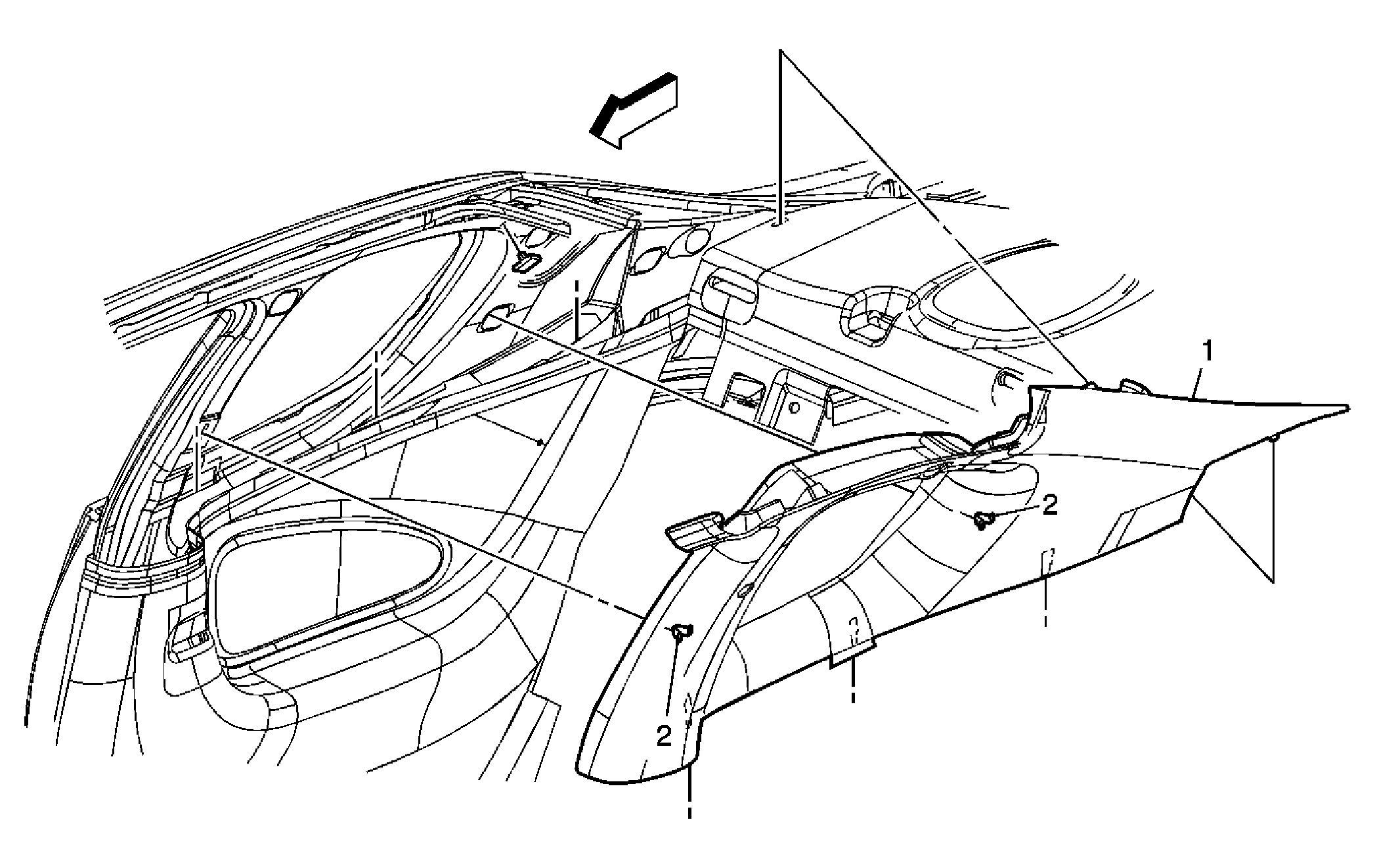

Fig 1: Identifying Rear Quarter Upper Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the coat hook. Refer to Coat Hook Replacement (Monte Carlo) .
1	Quarter Upper Trim Finish Panel Assembly Tip: Pull out to disengage the retainers and tilt inward and up to allow the tabs on the trim panel to release from the vehicle.
2	Quarter Upper Trim Finish Panel Retainer (Qty: 2)
