Seat Back Cover and Pad Replacement - Rear (Captain)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

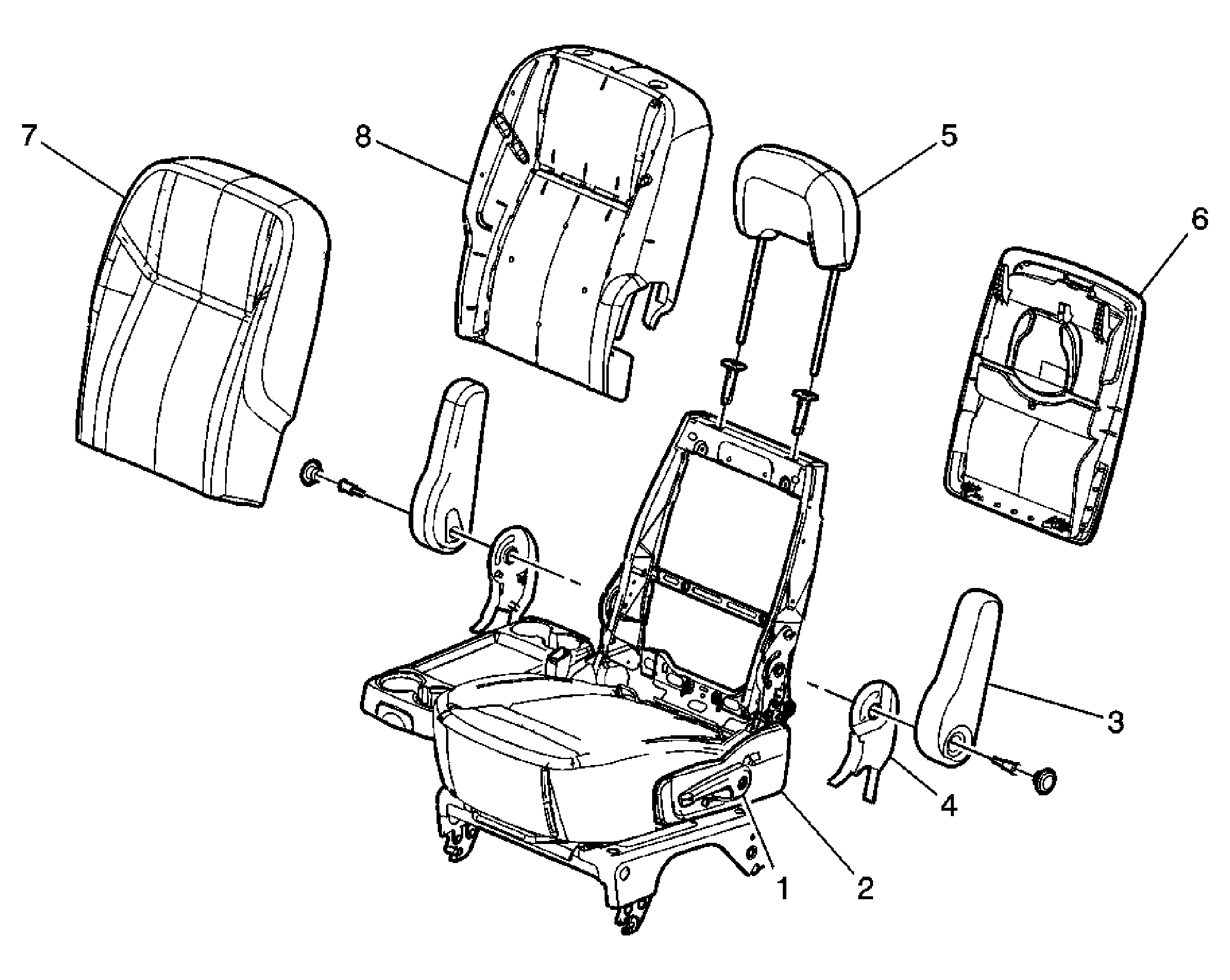

Fig 1: View Of Seat Back Cover and Pad - Rear (Captain)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR, if equipped. Refer to SIR Disabling and Enabling Zone 10 and SIR Disabling and Enabling Zone 12 . Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Handle, Rear Seat Recliner Refer to Seat Back Recliner Handle Replacement - Rear (Captain) or Seat Back Recliner Handle Replacement - Rear (Bucket) .
2	Cover, Rear Seat Recliner Lower (Qty: 2) Refer to Seat Back Recliner Cover Replacement - Rear (Captain) or Seat Back Recliner Cover Replacement - Rear (Bucket) .
3	Armrest, Rear Seat (Qty: 2) Refer to Armrest Replacement - Rear Seat (Captain) .
4	Cover, Rear Seat Back Recliner (Qty: 2) Refer to Seat Riser Replacement - Rear (Captain) or Seat Riser Replacement - Rear (Bucket) .
5	Head Restraint, Rear Seat Back Refer to Head Restraint Replacement - Rear Seat (Captain) or Head Restraint Replacement - Rear Seat (Bucket) .
6	Panel, Rear Seat Back Refer to Trim Panel Replacement - Rear Seat Back .
7	Trim, Rear Seat Back Lower Trim Tip: Pull rearward of seat back to disengage the clips.
8	Cover, Rear Seat Back Cushion Tip: Remove the hog rings that secure the cover to the pad.
9	Pad, Rear Seat Back Cushion
