Seat Back Recliner Cover Replacement - Rear (Captain)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

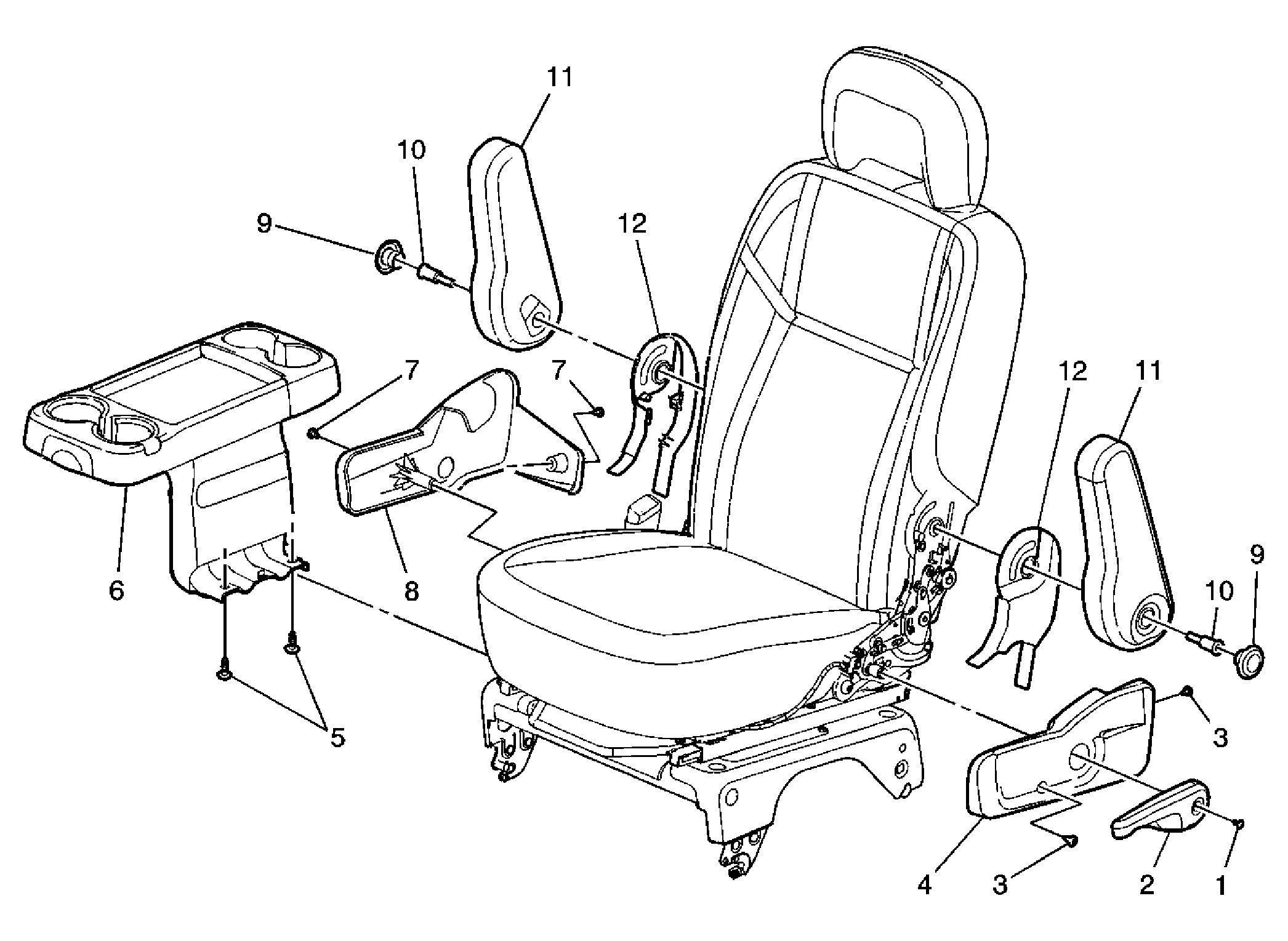

Fig 1: Identifying Seat Back Recliner - Rear (Captain)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR, if equipped. Refer to SIR Disabling and Enabling Zone 10 and SIR Disabling and Enabling Zone 12 . Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Screw, Rear Seat Recliner Handle Tighten: 2 N.m (18 lb in)
2	Handle, Rear Seat Recliner
3	Screw, Rear Seat Recliner Lower Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Cover, Rear Seat Recliner Lower
5	Bolt, Rear Seat Console Tray
6	Tray, Rear Seat Console
7	Screw, Rear Seat Recliner Lower Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
8	Cover, Rear Seat Recliner Lower
9	Cap, Armrest (Qty: 2)
10	Bolt, Armrest (Qty: 2) Tighten: 9 N.m (80 lb in)
11	Armrest (Qty: 2)
12	Cover, Rear Seat Recliner Upper
