Seat Back Recliner Handle Replacement - Rear (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

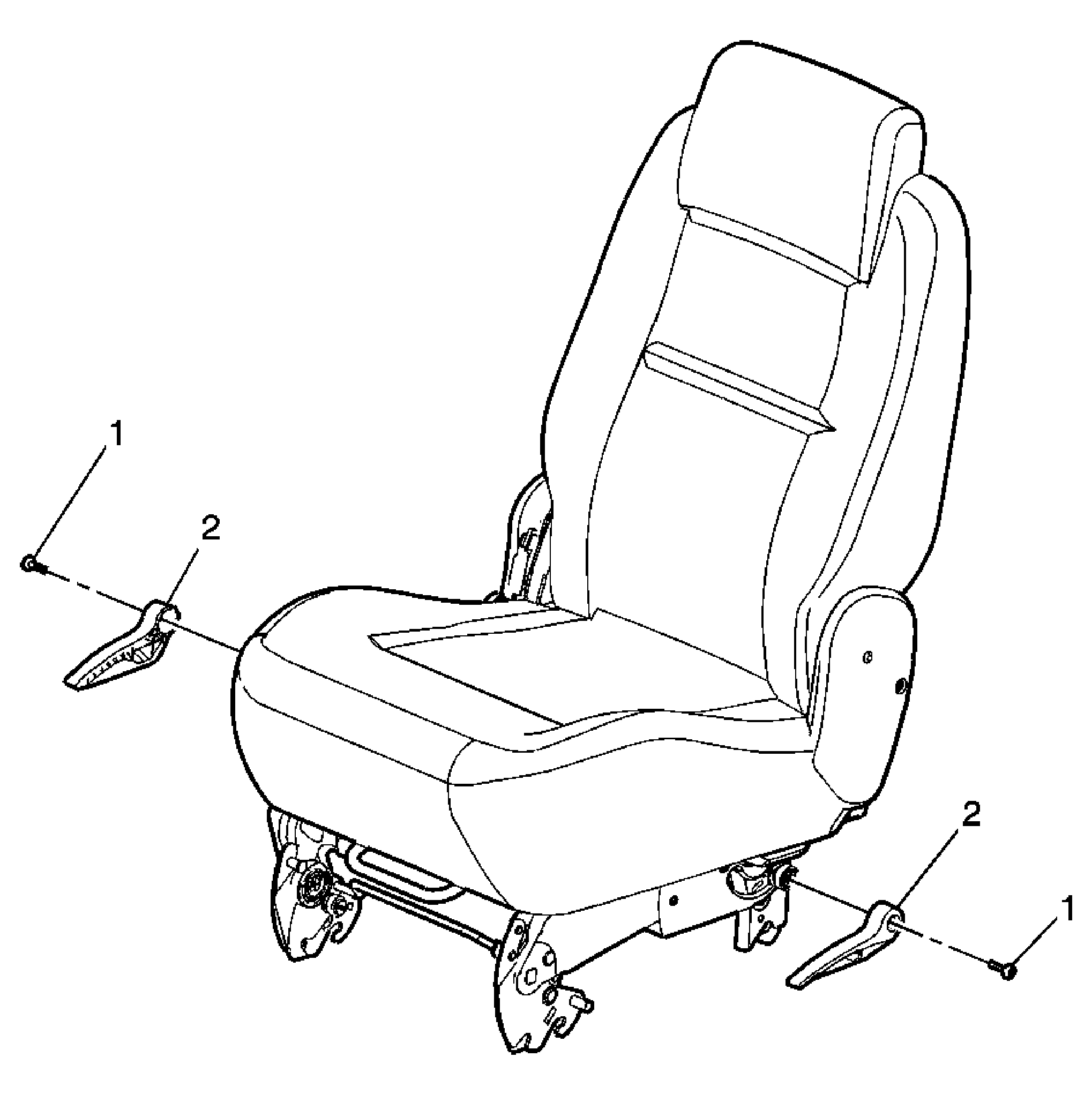

Fig 1: View Of Seat Back Recliner Handle - Rear (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Rear Seat Back Recliner Handle Tighten: 2 N.m (18 lb in)
2	Handle, Rear Seat Back Recliner
