Seat Back Recliner Cover Replacement - Rear (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

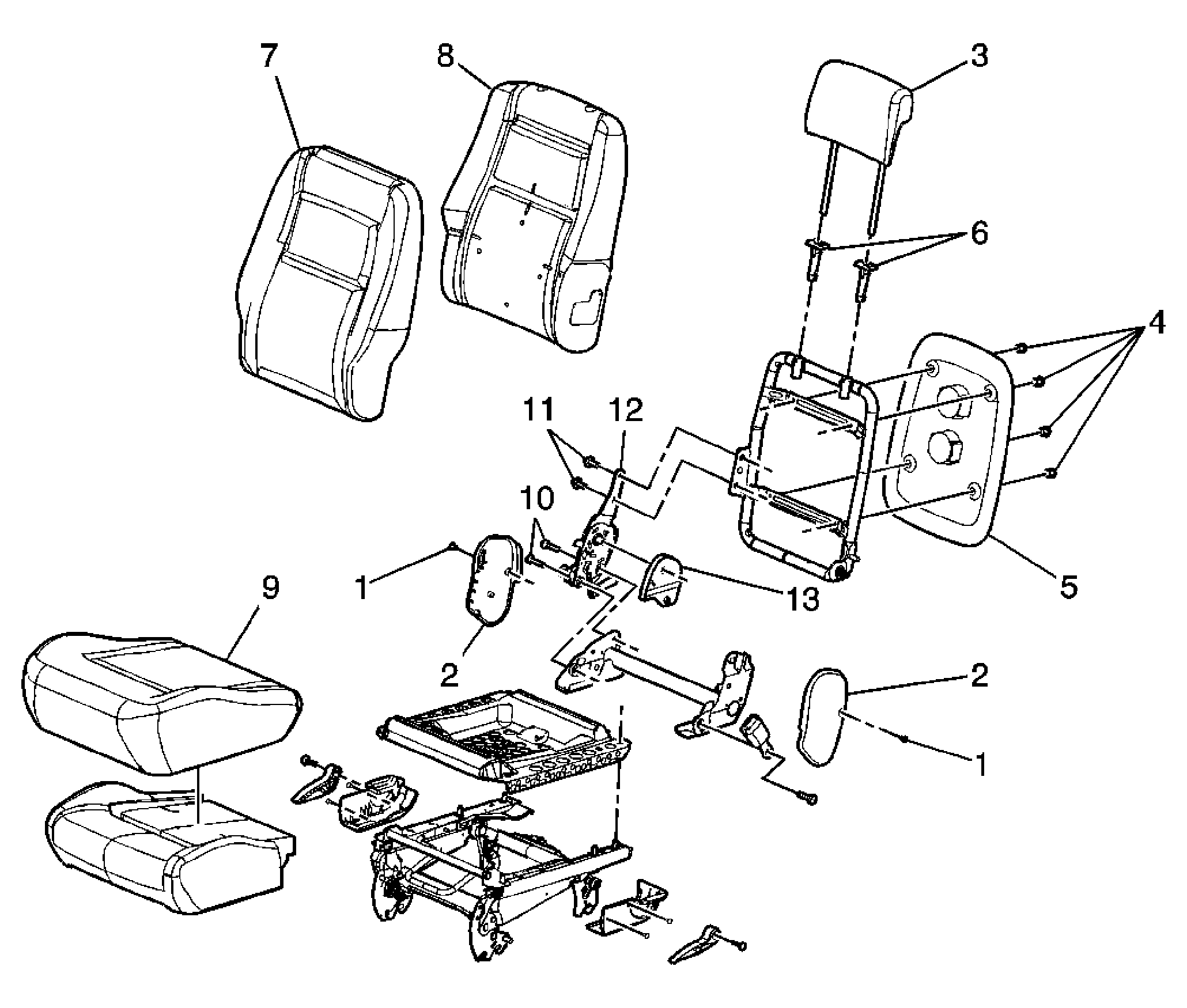

Fig 1: View Of Seat Back Recliner Cover - Rear (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Screw, Rear Seat Recliner Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Cover, Rear Seat Recliner Outer (Qty: 2)
3	Head Restraint, Rear Seat Back Refer to Head Restraint Replacement - Rear Seat (Captain) or Head Restraint Replacement - Rear Seat (Bucket)
4	Retainer, Rear Seat Back Protector (Qty: 4)
5	Protector, Rear Seat Back
6	Guide, Head Restraint (Qty: 2)
7	Cover, Rear Seat Back Cushion Refer to Seat Back Cover and Pad Replacement - Rear (Captain) or Seat Back Cover and Pad Replacement - Rear (Bucket)
8	Pad, Rear Seat Back Cushion Refer to Seat Back Cover and Pad Replacement - Rear (Captain) or Seat Back Cover and Pad Replacement - Rear (Bucket)
9	Cover, Rear Seat Cushion Refer to Seat Cushion Cover and Pad Replacement - Rear (Captain) or Seat Cushion Cover and Pad Replacement - Rear (Bucket)
10	Bolt, Rear Seat Back (Qty: 2) Tighten: 32 N.m (24 lb ft)
11	Bolt, Rear Seat Back Recliner (Qty: 2) Tighten: 32 N.m (24 lb ft)
12	Recliner Assembly, Rear Seat Back
13	Cover, Seat Back Recliner Inner
