Armrest Replacement - Rear Seat (Captain)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

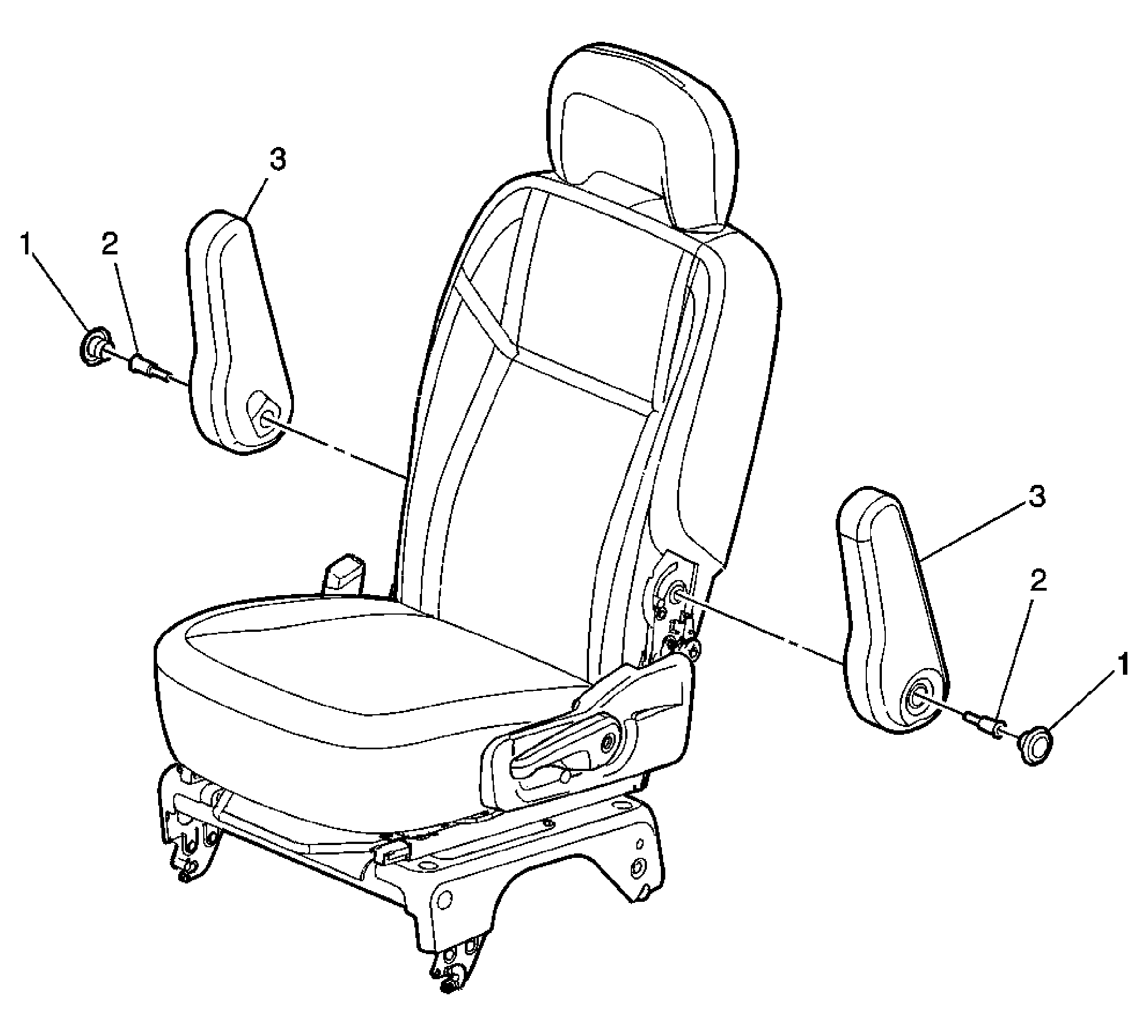

Fig 1: View Of Armrest - Rear Seat (Captain)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cap, Armrest
2	Bolt, Armrest Tighten: 9 N.m (80 lb in)
3	Armrest Tip: Once the armrest is removed from the seat, the cover and pad can be removed from the support if replacement is needed.
