Seat Riser Replacement - Rear (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

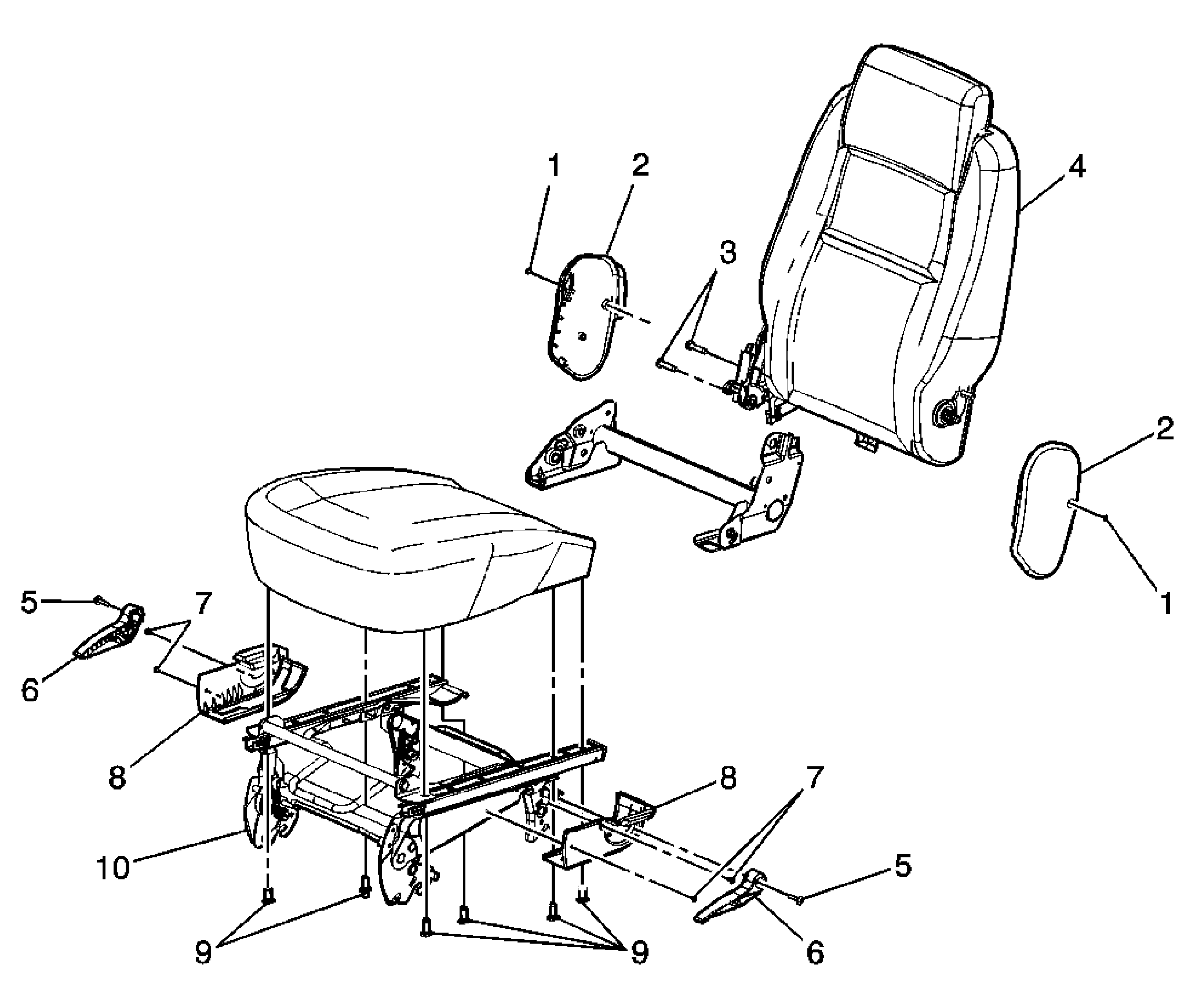

Fig 1: View Of Seat Riser - Rear (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Screw, Rear Seat Recliner Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Cover, Rear Seat Recliner Outer (Qty: 2)
3	Bolt, Rear Seat Back Recliner (Qty: 2) Tighten: 32 N.m (24 lb ft)
4	Seat Back Assembly
5	Screw, Rear Seat Back Recliner Handle Tighten: 2 N.m (18 lb in)
6	Handle, Rear Seat Back Recliner
7	Screw, Rear Seat Adjuster Cover (Qty: 4) Tighten: 2 N.m (18 lb in)
8	Cover, Rear Seat Adjuster Cover (Qty: 2)
9	Bolt, Rear Seat Riser (Qty: 6) Tighten: 45 N.m (33 lb ft)
10	Riser Assembly, Rear Seat Tip: The adjuster is serviced as a part of the riser assembly.
