Seat Riser Replacement - Rear (Captain)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Seat Riser Replacement - Rear (Captain)

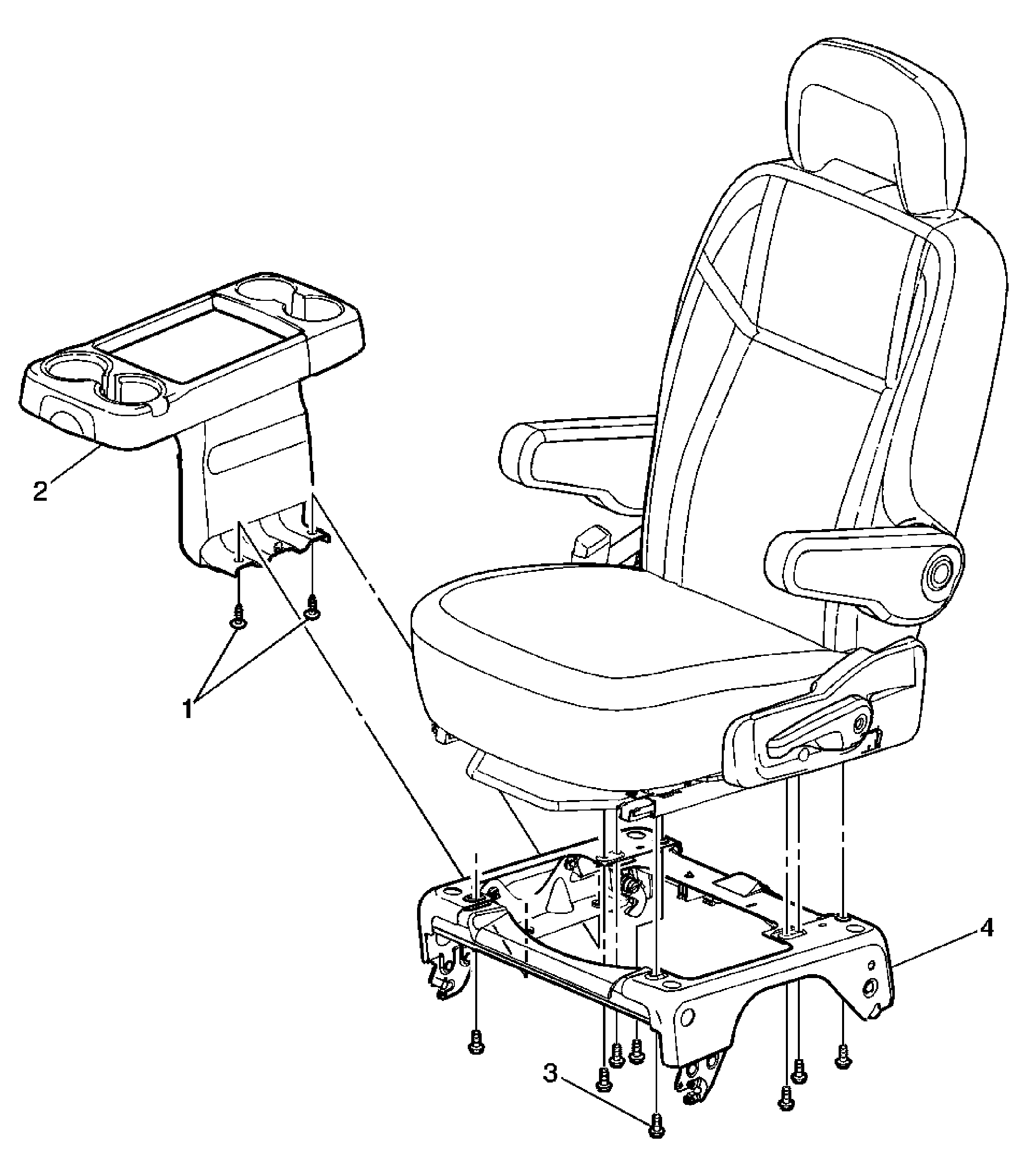

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear . |
|
| 1 | Bolt, Rear Seat Console Tray (Qty: 2) Tighten: 32 N.m (24 lb ft) |
| 2 | Tray, Rear Seat Console |
| 3 | Bolt, Rear Seat Riser (Qty 6) Tighten: 32 N.m (24 lb ft) |
| 4 | Riser, Rear Seat |
