Head Restraint Replacement - Rear Seat (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

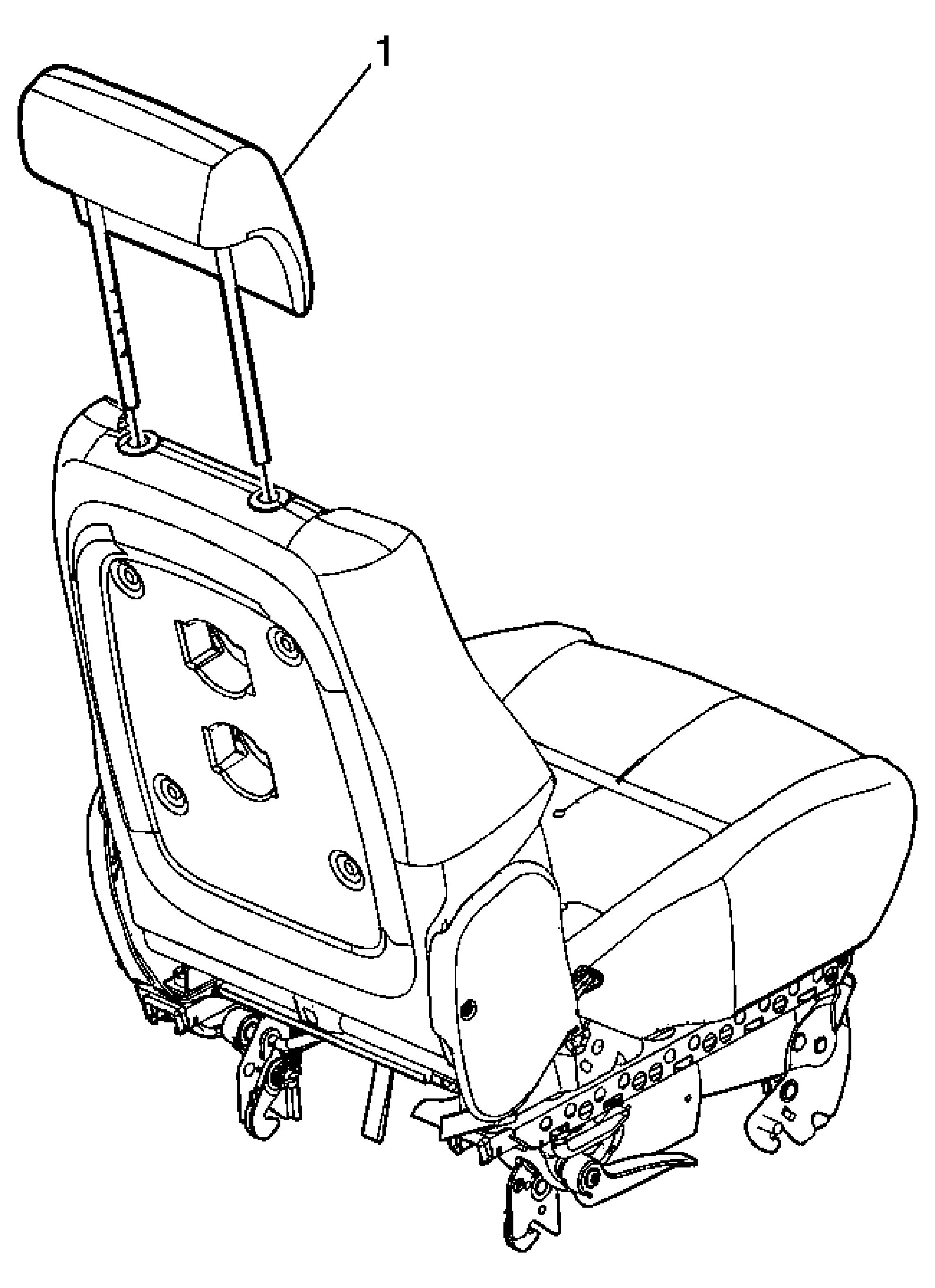

Fig 1: View Of Head Restraint - Rear Seat (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Head Restraint Tip: Push the head restraint down enough to center the locking clip in the guide between the detents on the posts. Insert the J 42372 Headrest Removal Tool down the inboard sides of each post. See Special Tools . Hold both tools down and pull the head restraint up to remove. The head restraint cover and foam pad can be replaced by releasing the j-channel on the bottom edge of the cover and sliding off the support.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Head Restraint
Tip:

Push the head restraint down enough to center the locking clip in the guide between the detents on the posts.
Insert the J 42372 Headrest Removal Tool down the inboard sides of each post. See Special Tools .
Hold both tools down and pull the head restraint up to remove.
The head restraint cover and foam pad can be replaced by releasing the j-channel on the bottom edge of the cover and sliding off the support.
