Installing rear axle differential
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
NOTE:
TECHNICAL INFORMATION
It is essential to replace the circlip of the output shaft.
It is essential to replace the circlip of the output shaft.
- Check the gearing of the output shaft for damage and replace damaged parts if necessary.
- Check the dust plate (1) for damage and replace the damaged parts if necessary.
- Replace the circlip (3).
Parts: Circlip
- Coat the contact surface (2) with approved rear differential fluid.
NOTE:
Description is for right component only.
The procedure on the left side is identical.
The procedure on the left side is identical.
- Insert installation protection ring (1) for the left output shaft and open it.
- Release special tool 2 413 317 from the left output shaft (1).
NOTE:
RISK OF DAMAGE
Failure to comply with the specification. Component damage.
Failure to comply with the specification. Component damage.
- All specifications must be observed and complied with.

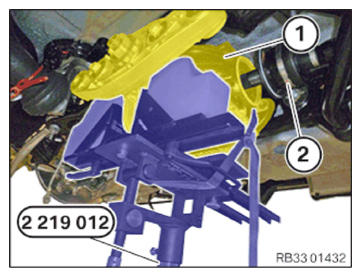

- Raise rear axle differential (1) using special tool 2 219 012 until the left output shaft (2) can be guided in.
- Guide the left output shaft (2) into the rear axle differential.
- Pull out and dispose of the installation protection ring.
- Raise the rear axle differential and position it on the rear axle support.
- Replace screws (1).
Parts: Screws
- Screw in the screws (1) by a few turns.
- Replace the nut (1) and the screw (2).
Parts: Nut, bolt
- Insert screw (2) into the rear axle support.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear differential to rear axle carrier, rear | ||
| M14 Replace screw and nut. | Tightening torque Angle of rotation |
165 Nm 90° |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Adapter of rear axle differential to rear axle support | ||
| M12 Replace screw. | Tightening torque Angle of rotation |
100 Nm 90° |
- Release special tool 0 496 080 (33 5 206) from special tool 0 496 009 (33 5 200) .
- Lower special tool 0 496 009 (33 5 200) using special tool 2 219 012 and keep it aside.
- Position ground cable (2) on the rear axle differential.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap on rear axle differential | ||
| M12 | Tightening Torque | 19 Nm |
Follow-up work
- Refer to INSTALLING THE HEAT SHIELD .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to LIFTING REAR AXLE SUPPORT .
- Refer to INSTALLING RIGHT OUTPUT SHAFT .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE REAR AXLE DIFFERENTIAL .
- Refer to ATTACHING THE BOTTOM WISHBONE AND THE CAMBER CONTROL ARM TO THE RIGHT WHEEL CARRIER .
- Refer to RELIEVING TENSION ON THE RIGHT COIL SPRING .
- Refer to INSTALLING THE RIGHT REAR BRAKE PADS .
- Refer to ADDING REAR DIFFERENTIAL FLUID .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT AND RIGHT THRUST FIELDS AND THE TORSION STRUT .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to SECURING THE CABLE TO THE REAR AXLE SUPPORT .
- Refer to FASTENING THE RIGHT OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION TO THE SHOCK ABSORBER AND THE WHEEL CARRIER .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to TIGHTENING THE SCREW CONNECTIONS TO THE WHEEL CARRIER .
