Tightening the screw connections to the wheel carrier
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

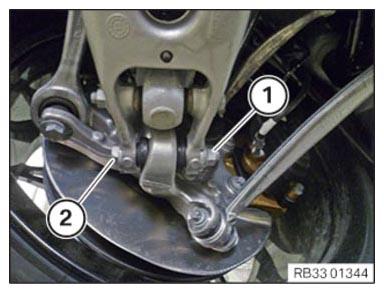

- Slacken the nut (1)
by a turn and tighten it. In doing so, counter support at the eccentric screw (2)
.TIGHTENING TORQUE SPECIFICATIONS
Camber control arm to wheel carrier M14
Replace eccentric screw, eccentric washer and nut.Tightening torque 165 Nm - Slacken the nut (1) by a turn and tighten it. In doing so, counter support at the eccentric screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Lower rear wishbone to wheel carrier | ||
| M12 Replace eccentric screw, eccentric washer and nut. |
Tightening torque | 100 Nm |
