Installing the support for dashboard

• Carefully insert the support for the dashboard and connect all connectors at the same time.
• Install the nuts (1)  and (2)  and tighten.
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard
  Nut M8	tightening torque	21 Nm
  M8 screw	tightening torque	21 Nm
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the retainer on the left and right and tighten the nuts (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard on bottom
  Nut M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard
  Nut M8	tightening torque	21 Nm
  M8 screw	tightening torque	21 Nm
  Nut M6	tightening torque	8 Nm

• Tighten nuts (1)  .
• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard
  Nut M8	tightening torque	21 Nm
  M8 screw	tightening torque	21 Nm
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

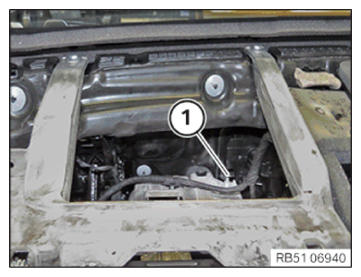

• Tighten nut (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard
  Nut M8	tightening torque	21 Nm
  M8 screw	tightening torque	21 Nm
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

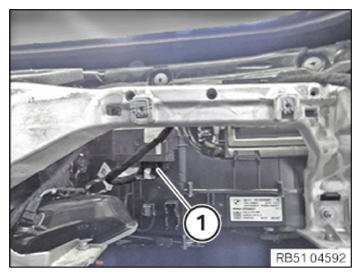

• Connect plug (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

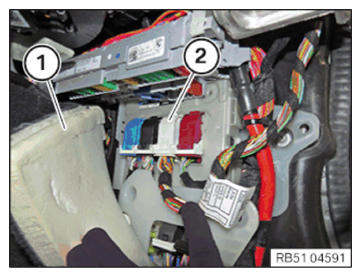

• Push the carpet (1)  in the area of the B-pillar to the side.
• Connect plug (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Installing the bottom steering shaft on the steering column
  NOTE: TECHNICAL INFORMATION
  The steering shaft and the steering column are not encoded to each other. At the time of removal, installation and replacement, mark the positioning of the steering shaft in relation to the steering column. Non-compliance will lead to inclination of the steering wheel.
• Observe the marking made at removal for positioning lower steering shaft (1)  on steering column (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the bottom steering shaft (2)  onto the steering column.
• Replace the clamping bolt (1)  .

  Parts:  Clamping bolt

• Tighten the clamping bolt (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Lower steering shaft to steering column
  Clamping bolt M8 Recut screw thread. Replace clamping bolt. No retorque permitted!	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

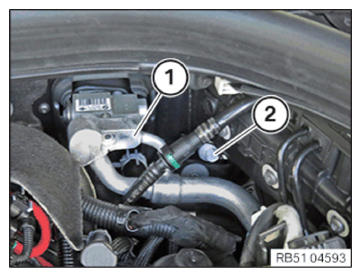

• Slightly push the refrigerant line (1)  to one side.
• Tighten down screw (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Support for dashboard
  Nut M8	tightening torque	21 Nm
  M8 screw	tightening torque	21 Nm
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
