Installing radio operating unit and air conditioning control panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

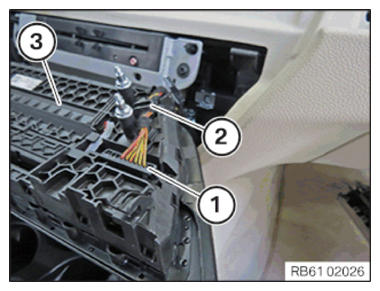

- Connect the connector plug (1) .
- Fasten the cable (2)
to the radio operating unit and to the climate control unit (3).

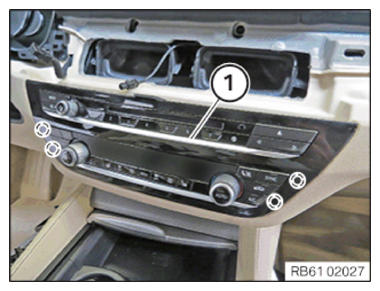

- (1) Insert the radio operating unit and the climate control unit into the dashboard panel.
- Clip in the radio operating unit and the air conditioning control panel (1)
at the marked points.
