Fit steering column shroud upper section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

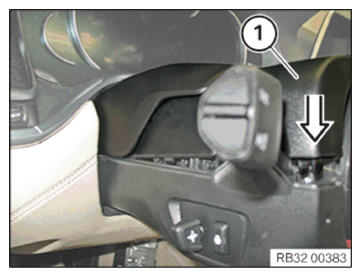

- Clip in the steering column shroud upper section (1) into the guide (2).
- Press the upper section of the steering column shroud (1) downwards in arrow direction.
The upper section of the steering column shroud must engage audibly and perceptibly.
- Seal the bore using rubber plugs (1).
