Installing the center cowl upper part

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

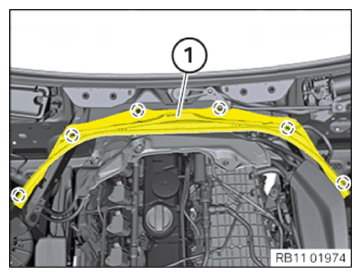

Position the center cowl upper part (1) .

Tighten the bolts in the marked areas.

TIGHTENING TORQUES SPECIFICATION

Cowl upper part to bottom cowl
	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

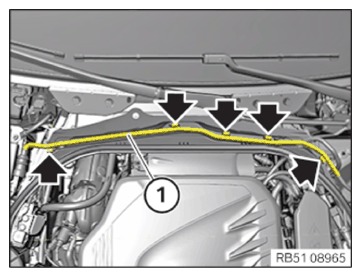

Version with mild hybrid technology:
Clip the line (1) onto the holders (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
