Install steering wheel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check the neutral position of the coil spring

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Check

Version A:
Check the mark (1) on the coil spring in the inspection glass (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure
Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2).
Check
Version B:
Check the mark (1) on the coil spring in the inspection glass (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure
Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2) .

Check

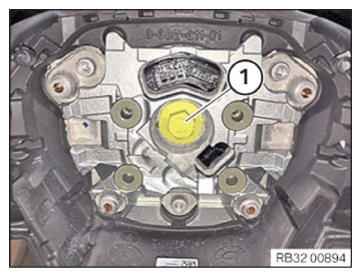

Check whether the screw (1) is micro-encapsulated.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The screw (1) is micro-encapsulated.

Measure
Clean thread in steering column.
Replace the screw (1) .

Parts: Screw

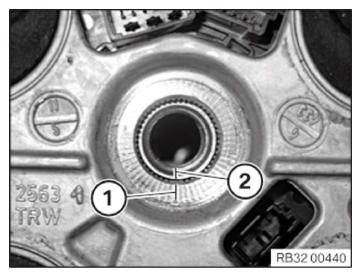

Align mark (1) on steering wheel to mark (2) on steering column.
Connect steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
If installed:
Connect connectors (2) and lock.

Tighten down screw (3) .

TIGHTENING TORQUES SPECIFICATION

Steering wheel to steering column
M14 Only with microencapsulated screw: Replace screw.	tightening torque	62.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the neutral position of the coil spring

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Check

Version A:
Check the mark (1) on the coil spring in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure
Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2).
Check
Version B:
Check the mark (1) on the coil spring in the inspection glass (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure
Turn the coil spring cassette until the mark (1) on the coil spring visible in the inspection glass (2) .
Align mark (1) on steering wheel to mark (2) on steering column.
Position the steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Check the screw connection!

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The screw (1) is micro-encapsulated.

Measure
Clean thread in steering column.
Replace the screw (1) .

Parts: Screw

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Steering wheel to steering column
M14 Only with microencapsulated screw: Replace screw.	tightening torque	62.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
