Installing the radio operating unit and air conditioning control panel (decorative strip installed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Attach the cable (2) to the radio operating unit and to the air conditioning control panel (3).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

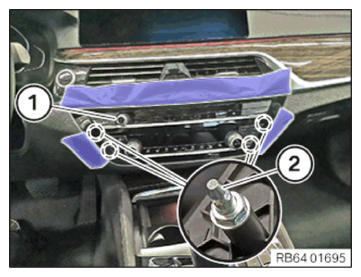

Feed in the radio operating unit and air conditioning control panel (1) and clip in using the ball hub (2).

Courtesy of BMW OF NORTH AMERICA, INC.

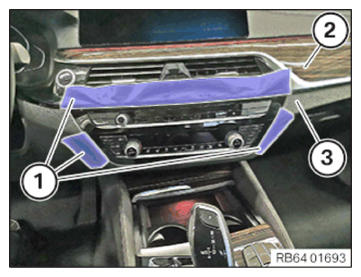

Remove the plastic adhesive tape (1) from the decorative strip (2) and the instrument panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.
