Removing the bearing bracket for the pedal mechanism
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
- Refer to REMOVING THE LOWER FRONT CENTER CONSOLE .
- Refer to REMOVING THE TRIM PANEL FOR THE PEDAL MECHANISM .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING DOOR SILL COVER STRIP, FRONT RIGHT .
- Refer to REMOVING THE SIDE COVER ON THE LEFT AND RIGHT DASHBOARD .
- Refer to REMOVING THE CENTER A-PILLAR TRIM PANEL AT LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING THE AIRBAG UNIT OF THE STEERING WHEEL .
- Refer to REMOVING STEERING WHEEL .
- Refer to REMOVING LOWER PART OF STEERING COLUMN SHROUD .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to REMOVING THE AIR DUCT FOR INDIRECT VENTILATION .
- Refer to REMOVING THE LEFT VENTILATION GRILLE .
- Refer to REMOVING THE CENTER VENTILATION GRILLE .
- Refer to REMOVING THE RIGHT VENTILATION GRILLE .
- Refer to REMOVING THE INSTRUMENT CLUSTER .
- Refer to REMOVING THE UPPER DASHBOARD TRIM .
- Refer to REMOVING THE CENTER STACK TRIM .
- Refer to REMOVING LIGHT OPERATING UNIT .
- Refer to PARTIALLY REMOVING INSTRUMENT PANEL LOWER SECTION .
- Refer to REMOVING THE SUPPORT LEG OF THE SUPPORT FOR THE INSTRUMENT PANEL .

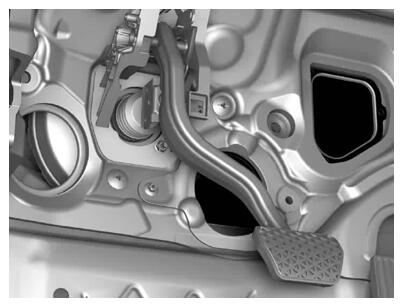

- Insert special tool 2 409 646 between brake pedal and brake booster.
- Place support (1)
of the special tool 2 409 646
on the bearing bracket. If necessary, fix the support by twisting the screw on the release tool.
- Press special tool 2 409 646
in the arrow direction and lever out the brake pedal from the brake booster.
- Loosen the nuts (1) .
- Loosen screw (3) .
- Remove bearing bracket (2)
.
