(Partially removing instrument panel lower section)
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.
- Release wiring harness in marked area from all holders on instrument panel lower section.
- Unlock available plug connections and disconnect.

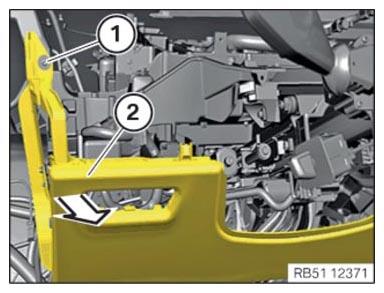

- Loosen screw (1).
- Pull the instrument panel lower section (2) from the mount on the left by approx. 4 cm.
Instrument panel lower section (2) remains in the vehicle.
