Removing steering column shroud upper section

Preliminary work

• Refer to ADJUSTING THE STEERING COLUMN POSITION .

• Turn the steering wheel by 90° to reach the recess in the steering column shroud.

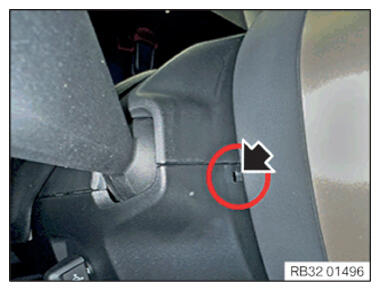

  Using a suitable tool (small slotted screwdriver), press retaining tab into the recess. Simultaneously unlock and remove the steering column shroud upper section.

  See following step for this.

  Courtesy of BMW OF NORTH AMERICA, INC.

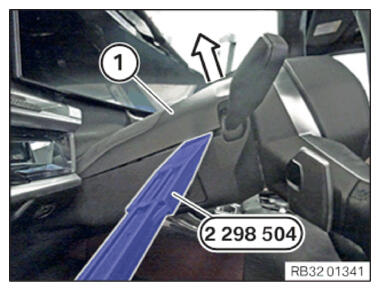

• Unlock the steering column shroud upper section (1)  with the special tool 2 298 504  and lift it upward to remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
