Removing the instrument cluster
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Unclip the cover (1)
and (2)
.
- Loosen screw (1)
.
- Loosen screws (1)
.

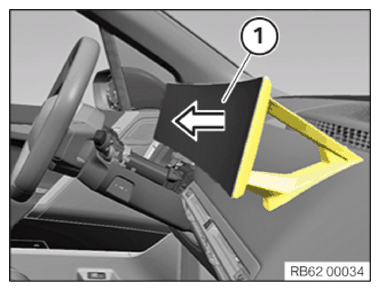

- Guide out the instrument cluster (1)
evenly in the arrow direction.
- Unlock and disconnect the plug connections (1) on the instrument cluster (KOMBI) (2) .
- Remove the instrument cluster (2) .
