Body Equipment (1 Of 2) -- Repair (IX)
>>
51 45 Dashboard Trim Panel, Instrument Panel Trim
>>
51 45 195 Remove and attach the lower right dashboard trim
>>

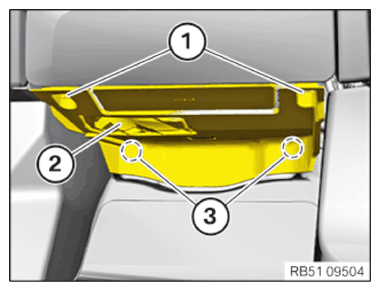

Remove right footwell trim
Remove right footwell trim
Turn the locks
(1)
by 90°.
Detach the footwell trim
(2)
inward from the guides
(3)
.
Remove the footwell trim
(2)
and also unlock and disconnect the corresponding plug connection.
