Removing the vehicle wiring harness for the sensor system of cylinder bank 2
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
WARNING:
Car may slip off the vehicle hoist where components are supported
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING RIGHT AND LEFT SIDE HOOD SEALS .
- Refer to PARTIALLY RELEASING THE FRONT LEFT AND RIGHT SPRING STRUT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING EXPANSION TANKS FOR THE CHARGE AIR COOLERS .
- Removing conduit from bank 1.
- Loosen screws (1).
- Slide conduit (2) downwards.
- Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
- Refer to REMOVING THE RETAINING BRIDGE IN AN EQUIPMENT SPECIFICATION WITH A GASOLINE PARTICULATE FILTER .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to DRAINING THE COOLANT FROM THE COOLANT PUMPS .
- Refer to REMOVING LEFT CHARGE AIR COOLER .
- Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
- Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
- Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
- Refer to REMOVING THE RIGHT ENGINE MOUNTING REINFORCEMENT STRUT .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to US VERSION ONLY: REMOVING THE BOTTOM HOLDER FROM THE COOLANT RADIATOR AT LEFT AND RIGHT .
- Refer to REMOVING THE SPRING STRUT HOLDER ON LEFT AND RIGHT .
- Refer to REMOVING THE OUTPUT SHAFTS .
- Refer to REMOVING THE ANTI-ROLL BAR .
- Refer to LOOSENING THE BRAKE CALIPER, LEFT AND RIGHT .
- Refer to RELEASING CABLE FROM VERTICAL ACCELERATION SENSOR ON LEFT AND RIGHT .
- Refer to DETACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
- Refer to REMOVING UNIVERSAL JOINT .
- Refer to LOOSENING TRANSMISSION OIL THERMOSTAT FROM HOLDER .
- Refer to DETACHING COOLANT HOSES FROM THE FRONT AXLE SUPPORT .
- Refer to PREPARING THE MOBILE TABLE LIFT .
- Refer to POSITIONING THE MOBILE LIFTING TABLE .
- Refer to REMOVING THE MOUNTING OF SWIVEL BEARING AT THE TOP LEFT AND RIGHT .
- Refer to UNSCREW THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to REMOVING FRONT AXLE COMPLETELY .
- Refer to RELEASING AIR CONDITIONING COMPRESSOR .
Removing the wiring harness for sensor system of cylinder bank 2, left
Wiring harness for sensor system of cylinder bank 2, left

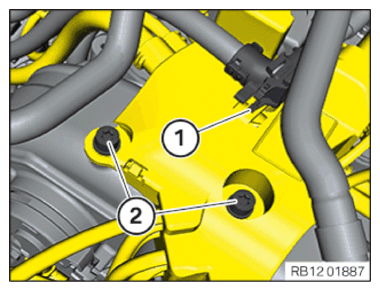

- Unlock plug connection (1) and disconnect.
- Loosen screws (2) .
- Disengage the coolant ventilation line in area (1) .
- Unlock plug connection (3) and disconnect.
- Place aside the holder with the vehicle wiring harness for the sensor system.
- Unlock the plug connection (1) on the exhaust turbocharger of cylinder bank 2 and detach.
- Unlock the plug connection of the oxygen sensor monitor of cylinder bank 2 (2) and disconnect.
- Unlock the plug connection of the high pressure pump of cylinder bank 2 (3) and disconnect.
- Unlock and disconnect the plug connection of the exhaust camshaft sensor of cylinder bank 2 (4) .
- Unlock the plug connection for the transmission wiring harness (5)
and disconnect.
- Unlock the vehicle wiring harness of the integrated power supply module (PDM) from the snap-in lug
- (1) and disconnect.
- Loosen screws (2) .
- Unlock and disconnect the plug connection of the intake camshaft sensor of cylinder bank 2 (1) .
- Loosen screw (5) .
- Loosen screw (4) .
- Put cable heads (2)
and (3)
aside.
- Unlock and disconnect the plug connection of the Valvetronic servomotor (1) .
- Unlock and disconnect the plug connection of the pressure sensor (2)
.
- Release the wiring harness mountings (1) .
- Unlock and disconnect plug connections of the knock sensors (2) .
- Unlock and disconnect the plug connection (1) of the tank vent valve of cylinder bank 2.
- Release the wiring harness mountings (2)
.
- Unlock and disconnect the plug connection of the VANOS solenoid actuator exhaust (1) .
- Unlock and disconnect the plug connection of the VANOS solenoid actuator intake (4) .
- Release the wiring harness mountings (2) .
- Loosen screw (3)
.
- Slightly pull the holder (1) to the front.
- Guide out the vehicle wiring harness (2) upwards.
- Unlock the plug connection (1)
of the electric coolant pump feed line and disconnect.
- Unlock and disconnect the tank ventilation line (1) .
Removing the wiring harness for the sensor system of the right cylinder bank 2
Wiring harness for sensor system of cylinder bank 2, right
- Loosen wiring harness fastening (1) .
- Release wiring harnesses in area (2)
out of the holder.
- Unlock and disconnect the holder of the wiring harness in area (1) .
- Unlock plug connection (1) and disconnect.
- Unlock wiring harness for the sensor system of the cylinder bank 2 and disconnect from the wiring harness for the sensor system of the cylinder bank 1 at the snap-in lug (2) .
- Guide out the wiring harness for the sensor system of the cylinder bank 2 and remove it.
