Remove upper heat shield
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING EXPANSION TANKS FOR THE CHARGE AIR COOLERS .

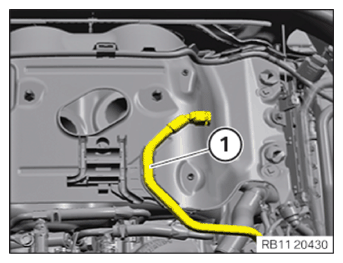

- Removing conduit from bank 1.
- Loosen screws (1).
- Slide conduit (2) downwards.
- Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
Remove upper heat shield
- Loosen screw (1).
- Feed out the gasoline particulate sensor holder (2) with the sensor from the centering pin (3).
- Loosen screw (1).
- Feed out the gasoline particulate sensor holder (2) with the sensor from the centering pin (3).
- Release the wiring harness mounting (1) from wiring harness (2).
- Disengage the hose (1) and place to one side.
- Disengage the line (2) from the cable brackets.
- Loosen screws (1).
- Remove the holder for the expansion tank (1) upwards.
- Loosen screws (1).
- Place the holder for the pressure pipe (2) to the side.
- Unclip the pressure lines from the clamps in the areas (1) and (2).
- Remove the holder (3) to one side.
- Loosen the lock (1).
- Remove the cover (2).
- Loosen the lock (1).
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals.
Risk of short circuits! Risk of fire!- Cover the vehicle battery.
NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Cover the vehicle battery with the special tool 2 452 007 as shown.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Remove the protective cap (1).
- Loosen nut (2).
- Detach the wiper arm (1) using special tool 0 493 441 (61 6 060)
.
- Release the cowl cover (1) from the detents (2) and (3).
- Detach the cowl cover (1) towards the top, starting from the side.

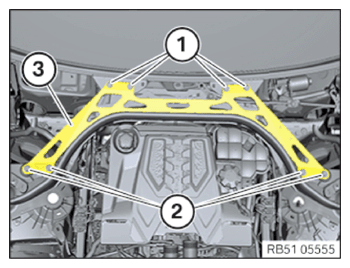

- Loosen screws (1) and (2).
- Remove tension strut (3) at the shock tower upwards.

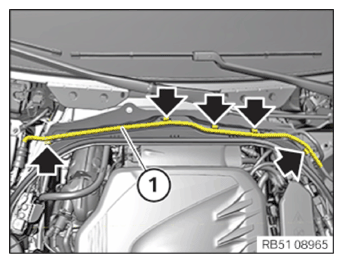

- Version with mild hybrid technology:
Unclip wire (1) from the holders (arrows).
- Unscrew the bolts in the marked areas.
- Remove the center cowl upper part (1).
- Loosen screws (1).
- Remove the heat shield (2) upwards.
Remove upper heat shield
- Loosen screw (1).
- Feed out the gasoline particulate sensor holder (2) with the sensor from the centering pin (3).
- Loosen screw (1).
- Feed out the gasoline particulate sensor holder (2) with the sensor from the centering pin (3).
- Disengage the hose (1) and place to one side.
- Disengage the line (2) from the cable brackets.
- Loosen screws (1).
- Remove the holder (1) for expansion tank upwards.
- Loosen screws (1).
- Remove the heat shield (2) upwards.
Removing the heat shield at the top
- Disengage the hose (1) and place to one side.
- Disengage the line (2) from the cable brackets.
- Loosen screws (1).
- Remove the holder (1) for expansion tank upwards.
- Loosen screws (1).
- Remove the heat shield (2) upwards.
