Removing the wiring harness from the cylinder bank 2
Removing the wiring harness from the cylinder bank 2

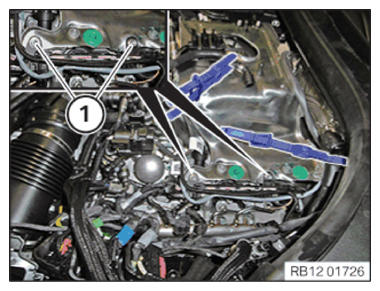

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

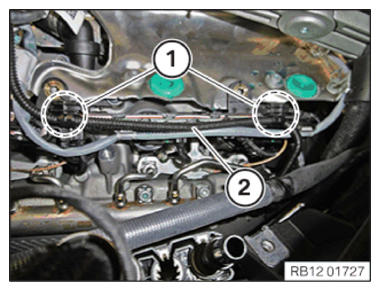

Unclip the wiring harness (2) from the clamps (1).
Place the wiring harness (2) on the side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
