Remove front axle completely

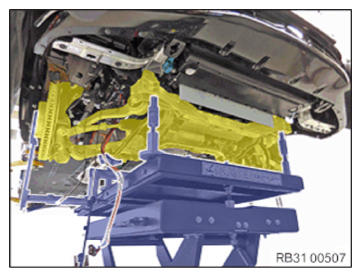

• Lower the front axle support (1)  by dimension (A)  .

Dimension (A)  = maximum 10 cm

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screws (1)  on the engine oil cooler (2)  on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position engine oil cooler (1)  behind the front axle support (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Completely lower and remove front axle carefully.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the engine oil cooler (2)  .
• Screw in the screws (1)  by a few turns.

Courtesy of BMW OF NORTH AMERICA, INC.
