Installing wiring harness for sensor system of cylinder bank 2

Installing the Cylinder Bank 2 sensor wiring harness

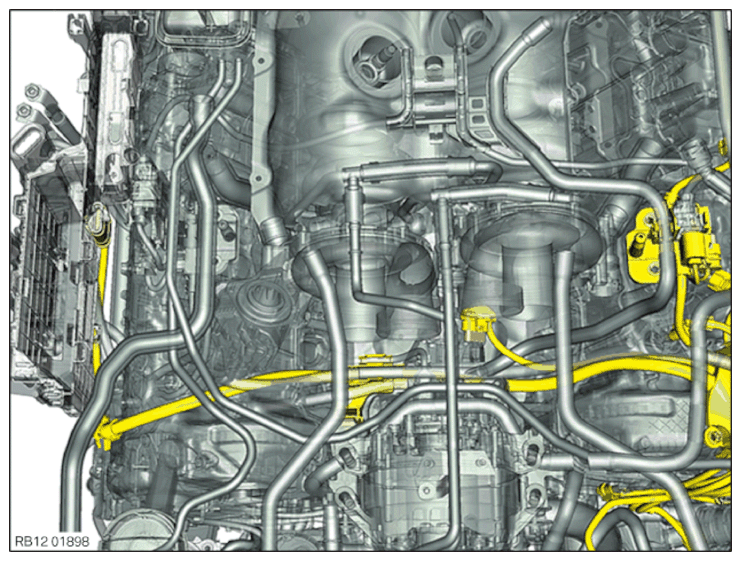

Wiring harness for sensor system of cylinder bank 2, right

Courtesy of BMW OF NORTH AMERICA, INC.

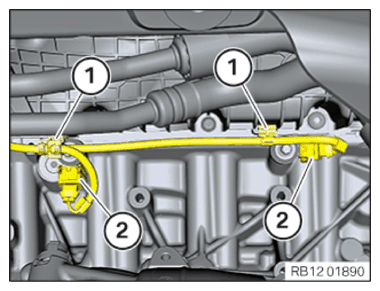

• Position the Cylinder Bank 2 sensor wiring harness and insert.

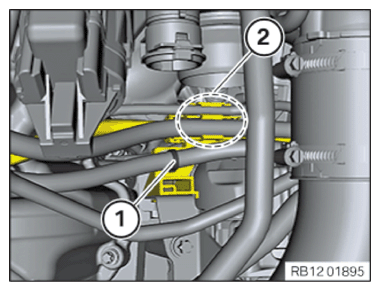

• Connect the Cylinder Bank 2 sensor wiring harness to the Cylinder Bank 1 sensor wiring harness at the snap-in lug (2)  and lock.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

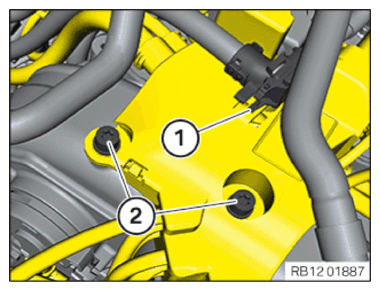

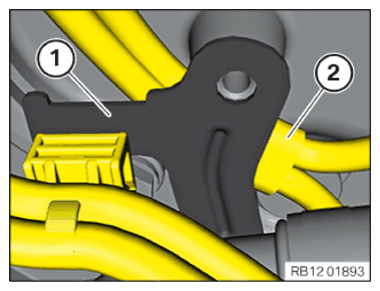

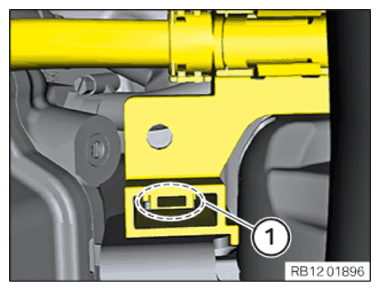

• Connect the wiring harness bracket at the area (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the wiring harnesses in the bracket in the area (2)  .
• Install wiring harness mounting (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing wiring harness for sensor system of cylinder bank 2, left

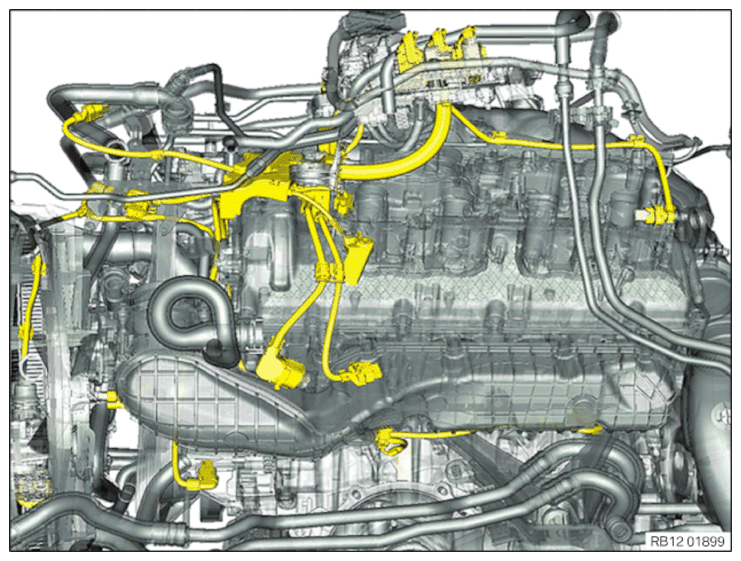

Wiring harness for sensor system of cylinder bank 2, left

Courtesy of BMW OF NORTH AMERICA, INC.

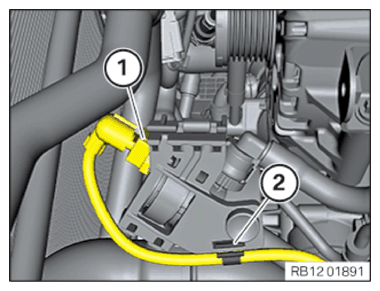

• Connect and lock tank vent line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

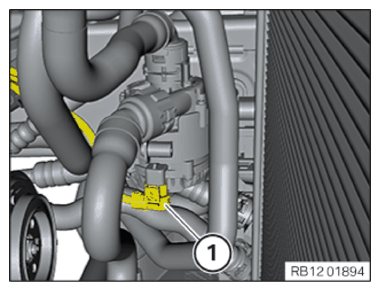

• Connect connector (1)  of electric coolant pump for the feed line, and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

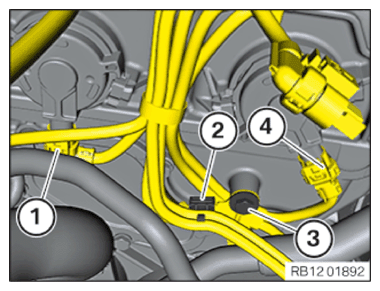

• Slightly pull the holder (1)  to the front.
• Insert the wiring harness (2)  downward.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (3)  .

Heater return
M6x18	Tightening torque	8 Nm

• Secure the wiring harness mounting (2)  .
• Connect the connector (4)  of the intake VANOS solenoid actuator and lock it.
• Connect the connector (1)  of the exhaust VANOS solenoid actuator and lock it.
• Secure the wiring harness mounting (2)  .
• Connect connector (1)  of tank vent valve of cylinder bank 2 and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (2)  of the knock sensors and lock it.
• Fix wiring harness fasteners (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1)  of the Valvetronic servomotor and lock it.
• Connect the connector (2)  of the pressure sensor and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

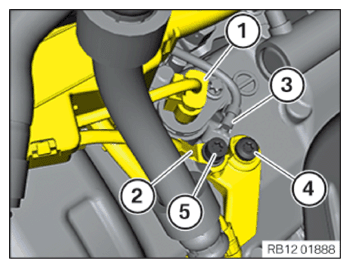

• Position cable lugs (2)  and (3)  .
• Tighten down screw (4)  .

Wiring harness holder to cylinder head cover
M6x20 screw	tightening torque	10 Nm

• Tighten down screw (5)  .

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1)  of the intake camshaft sensor of cylinder bank 2 and lock it.
• Tighten down screws (2)  .

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

• Connect wiring harness of the integrated power supply module (PDM) at the snap-in lug (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

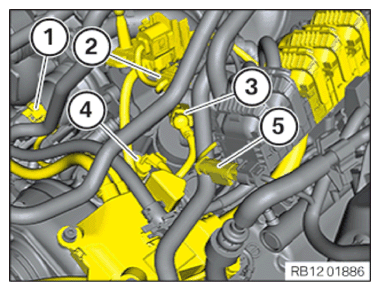

• Connect the connector (5)  of the transmission wiring harness and lock it.
• Connect the connector (4)  of the exhaust camshaft sensor of the cylinder bank 2 and lock it.
• Connect the connector (3)  of the high pressure pump of the cylinder bank 2 and lock it.
• Connect the connector (2)  of the oxygen sensor monitor of the cylinder bank 2 and lock it.
• Connect connector (1)  at exhaust turbocharger of cylinder bank 2 and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the holder with the wiring harness for the sensor system.
• Connect connectors (3)  and lock.
• Attach the coolant ventilation line in the area (1)  .
• Tighten down screws (2)  .

Holder of sensor system
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1)  of the rail pressure sensor and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING AIR CONDITIONING COMPRESSOR .
• Refer to INSTALLING FRONT AXLE COMPLETELY .
• Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE SWIVEL BEARING AT THE TOP LEFT AND RIGHT .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
• Refer to SECURING THE TRANSMISSION OIL THERMOSTAT TO THE HOLDER .
• Refer to INSTALLING THE UNIVERSAL JOINT .
• Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
• Refer to SECURING CABLES ON VERTICAL ACCELERATION SENSOR ON RIGHT AND LEFT .
• Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE ANTI-ROLL BAR .
• Refer to INSTALLING THE OUTPUT SHAFTS .
• Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
• Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
• Refer to US VERSION ONLY: INSTALLING HOLDER ON LEFT AND RIGHT BELOW THE RADIATOR .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE RIGHT ENGINE MOUNT .
• Refer to REMOVING ENGINE BRIDGE .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING THE LEFT THROTTLE BODY .
• Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to CLOSING THE COOLANT PUMPS .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING DRIVE BELT .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE RETAINING BRIDGE IN AN EQUIPMENT SPECIFICATION WITH A GASOLINE PARTICULATE FILTER .
• Installing conduit on bank 2.

  Courtesy of BMW OF NORTH AMERICA, INC.

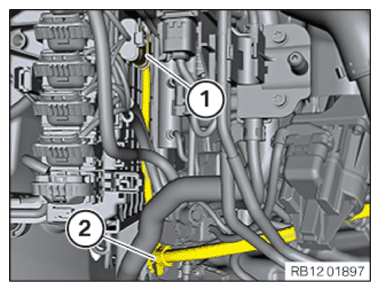

  • Clip the wiring harness (2) into the clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the wiring harness.
  • Tighten down screws (1).
    TIGHTENING TORQUES



    Cable duct
    M6x16 screw	Tightening torque	10Nm

• Installing cable duct at cylinder bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the conduit (2).
  • Tighten the screws (1).
  TIGHTENING TORQUES



  Cable duct
  M6x16 screw	Tightening torque	10Nm

• Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
• Refer to INSTALLING COOLANT EXPANSION TANK .
• Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to FASTENING THE FRONT LEFT AND RIGHT SPRING STRUT .
• Refer to INSTALLING THE SIDE LEFT AND RIGHT SEAL FOR THE HOOD .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
