Install front axle completely

NOTE: TECHNICAL INFORMATION
Secure component against falling.

Release the screws (1) on the engine oil cooler (2) at left and right.

G15194816

Courtesy of BMW OF NORTH AMERICA, INC.

Position front axle completely under the vehicle.

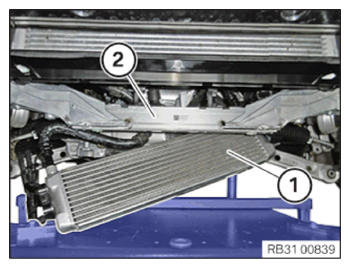

Position engine oil cooler (1) behind the front axle support (2) .

G15181173

Courtesy of BMW OF NORTH AMERICA, INC.

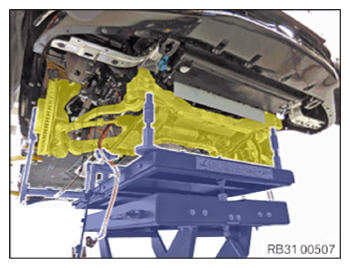

Carefully lift front axle completely and position on vehicle.

G15181174

Courtesy of BMW OF NORTH AMERICA, INC.

Position engine oil cooler (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

upstream engine oil cooler
M6x45 screw	Tightening torque	8 Nm

G15194816

Courtesy of BMW OF NORTH AMERICA, INC.
