Connect battery ground lead

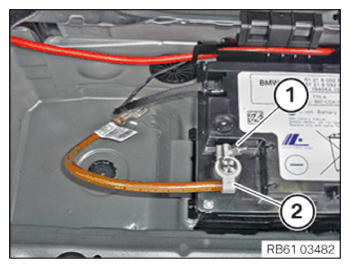

Position the negative battery terminal (2) on the negative battery terminal.
Tighten the nut (1).

TIGHTENING TORQUES SPECIFICATION

Negative battery terminal
Nut	tightening torque	5 Nm

G15190149

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
