Installing the two high pressure pumps
Installing the high pressure pump for cylinders 4 to 6
NOTE:
RISK OF DAMAGE
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear
NOTE:
TECHNICAL INFORMATION
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump
- Place the depth gauge (1) flat onto the high pressure pump flange
- Turn the engine at the central bolt in the direction of engine rotation until the camshaft is in the BDC position
The depth gauge (1) is in the lowest position
NOTE:
RISK OF DAMAGE
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear

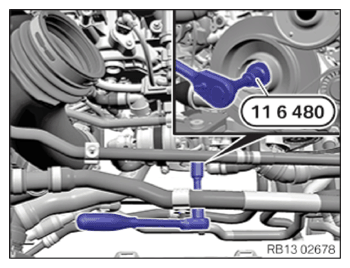

- Rotate the engine using special tool 0 493 380 (11 6 480) until the cam of the high-pressure pump drive is at the BDC position
- Guide out and remove gasket (1)
- Replace the seal (1)
Parts: Seal
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Check the threads (1) on the high pressure pump flange for sealing compound residue: Remove sealing compound residue as needed
- Clean the thread (1) with a thread cutter M6
- Make sure that no contamination gets into the engine
- Cover opening at the high pressure pump flange with suitable materials
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Clean sealing surface (1)
- Guide in and install the seal (1)
- Make sure that the seal (1) is positioned correctly in the marked area
NOTE:
RISK OF DAMAGE
Damage to the surface
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage
Damage to the surface
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage
- Do not use any metal-cutting tools
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Clean sealing surface (1)

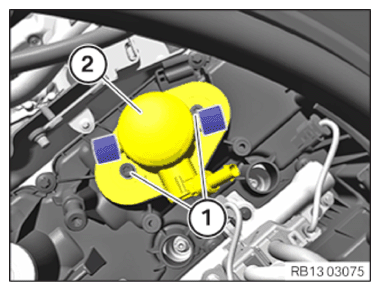

- Insert and install the high pressure pump (2)
- Replace the screws (1)
Parts: Screws
- Position the screws (1) on the high pressure pump (2) and tighten them in alternating order in 90° increments
Compliance with this specification is imperative to make sure that the piston will not break due to twisting
TIGHTENING TORQUE SPECIFICATIONS
| High pressure pump to high pressure pump flange | ||
| M6x25 Replace screws |
Joining torque | 12 Nm |
| Tightening torque | 90° | |
Installing the high pressure pump for cylinders 1 to 3
NOTE:
RISK OF DAMAGE
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear
NOTE:
TECHNICAL INFORMATION
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump
- Place the depth gauge (1) flat onto the high pressure pump flange
- Turn the engine at the central bolt in the direction of engine rotation until the camshaft is in the BDC position
The depth gauge (1) is in the lowest position
NOTE:
RISK OF DAMAGE
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
Damage to the engine
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear
- Rotate the engine using special tool 0 493 380 (11 6 480) until the cam of the high-pressure pump drive is at the BDC position
- Guide out and remove gasket (1)
- Replace the seal (1)
Parts: Seal
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Check the threads (1) on the high pressure pump flange for sealing compound residue: Remove sealing compound residue as needed
- Clean the thread (1) with a thread cutter M6
- Make sure that no contamination gets into the engine
- Cover opening at the high pressure pump flange with suitable materials
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Clean sealing surface (1)
- Guide in and install the seal (1)
- Make sure that the seal (1) is positioned correctly in the marked area
NOTE:
RISK OF DAMAGE
Damage to the surface
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage
Damage to the surface
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage
- Do not use any metal-cutting tools
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents
The sealing surfaces must be free of oil, grease and cleaning agents
- Clean sealing surface (1)

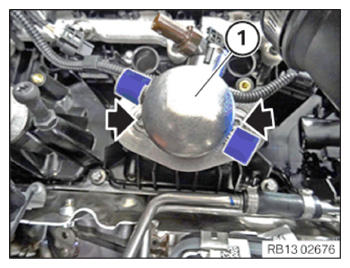

- Insert and install the high pressure pump (1)
- Replace the bolts (arrows)
Parts: Screws
- Position the screws (arrows) on high pressure pump (1) and tighten them alternately in steps of 90°
Compliance with this specification is imperative to make sure that the piston will not break due to twisting
TIGHTENING TORQUE SPECIFICATIONS
| High pressure pump to high pressure pump flange | ||
| M6x25 Replace screws |
Joining torque | 12 Nm |
| Tightening torque | 90° | |
