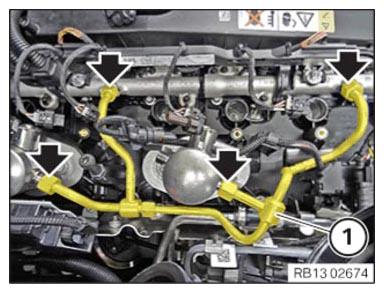

(Installing the high pressure line between the high pressure pump and the rail for cylinders 1 to 6)
- Insert and install the high pressure line (1)
- Tighten the union nuts (arrows) with the special tool 0 495 280 (13 0 140)
(TIGHTENING TORQUE SPECIFICATIONS)
| High pressure line between the rail and the high pressure pump |
| M14x1.5 |
tightening torque |
33 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
