Install front underbody protection

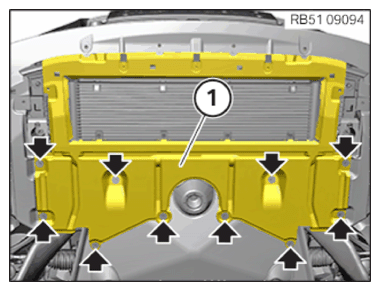

• Feed in the front underbody protection (1) to the bumper cover and position it correctly
• Tighten screws (arrows)
  TIGHTENING TORQUES SPECIFICATION



  Underbody protection front
  Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT SPOILER .
