Connecting the coolant line to the radiator
- Check sealing rings (1) of coolant lines (2) for damage and, if necessary, replace them

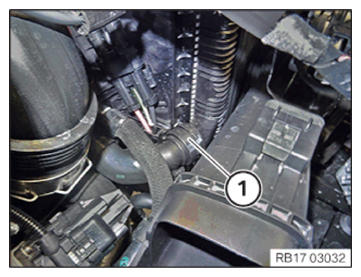

- Connect the coolant line (1) to the radiator and lock it
The coolant line (1) must audibly engage

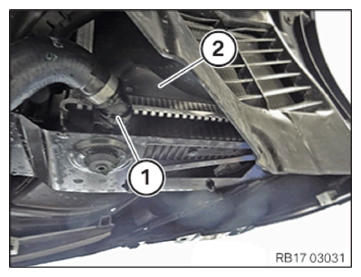

- Connect the coolant line (1) on the auxiliary coolant radiator (2) and lock it
The coolant line (1) must audibly engage
Follow-up work
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to CHECK THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
