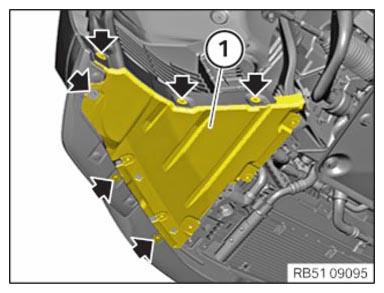

(Install the bottom front right side cover)

NOTE: Description is for left component only. Procedure on the right side is identical

Installing bottom front cover from the side

Precondition

The front underbody protection has been removed

(TIGHTENING TORQUE SPECIFICATIONS)

Lower side cover at front
Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
