Body Equipment -- Repair (2 Of 2) -- M3 (G80)
>>
51 71 Gaskets And Loose Body Parts
>>
51 71 341 Remove & install/replace strut brace (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Install the strut brace
Install the strut brace

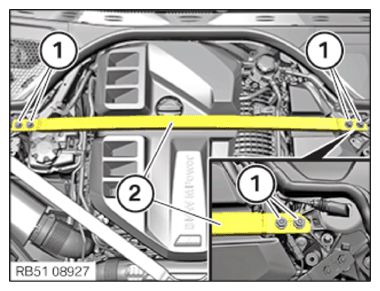

Install strut brace (2) and ensure that the installation position is correct as shown
Tighten nuts (1)
TIGHTENING TORQUES SPECIFICATION
Strut brace/front-end strut to holder
hexagon nut M8
Tightening torque
28 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
