Body Equipment -- Repair (2 Of 2) -- M3 (G80)
>>
51 71 Gaskets And Loose Body Parts
>>
51 71 404 Removing and mounting/replacing front spoiler (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Installing the front spoiler
Installing the front spoiler

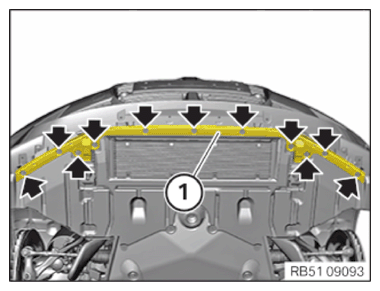

Install the front spoiler (1)
Tighten screws (arrows)
TIGHTENING TORQUES SPECIFICATION
Front spoiler
Oval-head screw
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
