Installing the front-end strut

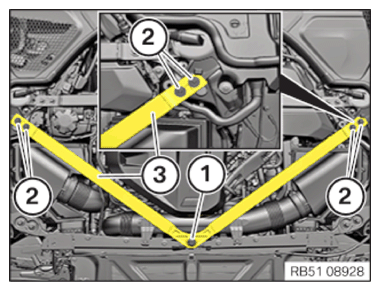

- Install the front-end brace (3) and ensure the correct installation position as shown
- Replace the screw (1)
Parts: Screw
- Tighten down screw (1)TIGHTENING TORQUES SPECIFICATION
Front-end strut to upper rear connection M10x35 screw Replace screw Tightening torque 56 Nm Angle of rotation 90° - Tighten nuts (2)TIGHTENING TORQUES SPECIFICATION
Strut brace/front-end strut to holder hexagon nut M8 Tightening torque 28 Nm
