Install the wiring harness section of the transmission wiring harness

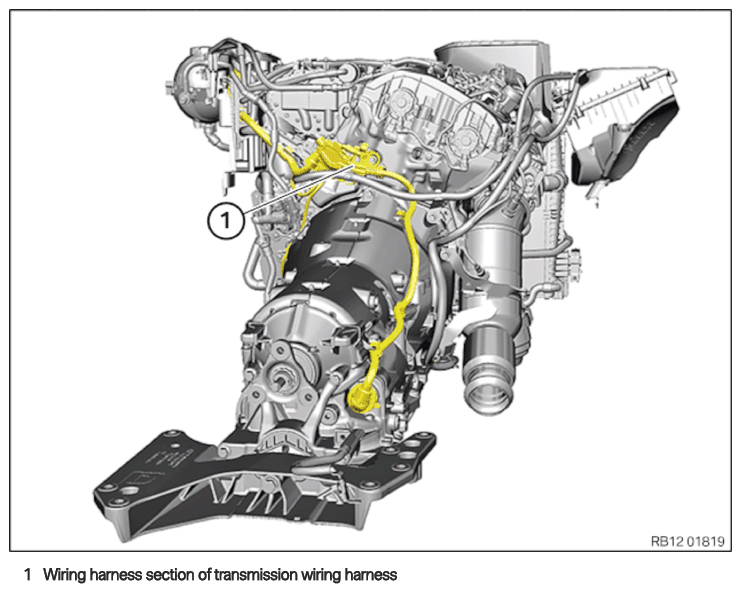

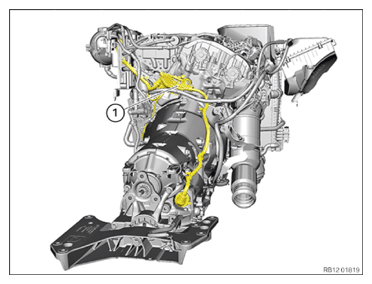

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

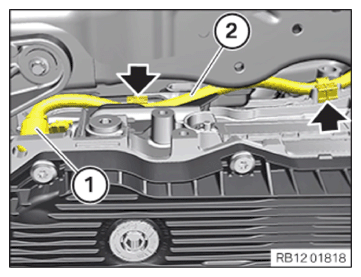

- Insert and install the wiring harness (1)
for the transmission module.
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).

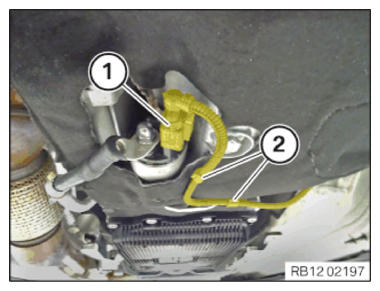

- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission

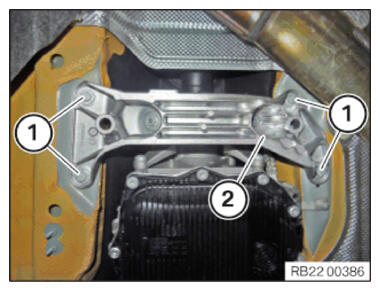

- Lift the transmission (2) into the mounting orientation.
- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Loosening the luggage strap (1) .
- Remove special tools 2 219 012
and 0 495 498 (23 4 050).

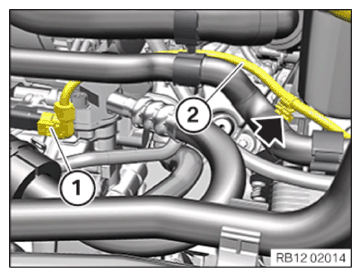

- Install the wiring harness section (3) and fasten with the clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

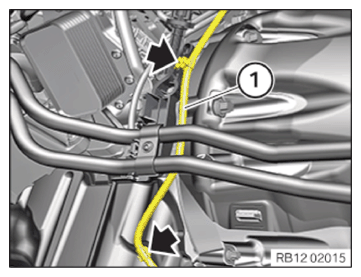

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamps (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Secure the clamps (arrows).
Follow-up work
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE HEAT SHIELD .
- Refer to INSTALLING THE RETAINING PLATES .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE RIGHT REAR TORSION STRUT .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING THRUST FIELD ON THE SHOCK TOWER .
- Refer to INSTALLING THE COMPLETE REAR HOOD SEAL .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
