(Installing the right rear torsion strut)

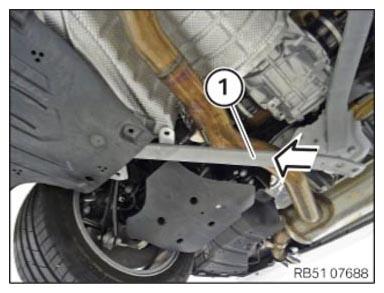

- Feed in torsion strut (1) at the rear right rear in the arrow direction and position it.

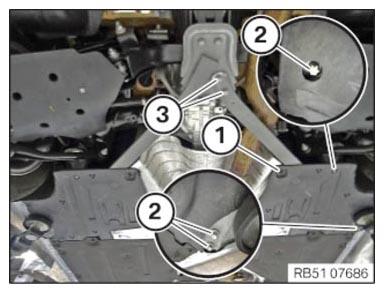

- Replace screws (2) and (3).
Parts: Screws
- Hand-tighten the bolts (1) to (3).
- Tighten down screws (3).
(TIGHTENING TORQUES SPECIFICATION)
| Torsion strut to mounting | ||
| M12 Replace screws. |
Tightening torque | 100 Nm |
| Angle of rotation | 90° | |
- Tighten down screws (2).
(TIGHTENING TORQUES SPECIFICATION)
| Torsion strut on compression strut/side member | ||
| M10 x 30 Replace screw(s). |
tightening torque | 56 Nm |
| Angle of rotation | 90° | |
- Tighten down screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| Tank cover bottom side | ||
| screw | Tightening torque | 3 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
