Installing the refrigerant line between the air conditioning compressor and condenser

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Replace O-rings.
Parts : O-rings

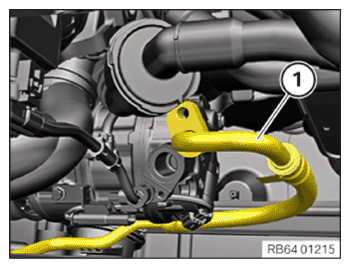

Completely thread in refrigerant line (1) and position correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Position refrigerant lines (2) at the top on the air conditioning compressor.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Refrigerant line on air conditioning compressor
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position the air conditioning compressor (2).

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Air conditioning compressor in component carrier
M10	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Place refrigerant line (2) on the condenser (3).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Refrigerant line to air conditioning condenser/bracket
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

In Version A:
Push the air conditioning condenser (1) downwards and engage the latch mechanisms (2).

Courtesy of BMW OF NORTH AMERICA, INC.
In Version A:
Attach the retaining strap (1).

Engage the hose support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
In Version B:
Push the condenser (1) in direction of arrow and insert with guides (2).

Courtesy of BMW OF NORTH AMERICA, INC.
In Version B:
Slide in the condenser (2) from top downwards.

Engage latch mechanisms (1) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.
Position refrigerant line (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Refrigerant line to air conditioning condenser/bracket
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DRIVE BELT FOR THE ALTERNATOR .
Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
Refer to INSTALLING AIR DUCT TO RADIATOR .
Refer to INSTALLING THE BUMPER CARRIER IN THE FRONT TOP .
Refer to INSTALLING IMPACT ABSORBER .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to INSTALLING TEMPERATURE SENSOR .
Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT RIGHT WHEEL .
Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH COVER .
Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM .
Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
Refer to INSTALLING ACOUSTIC COVER .
Refer to CONNECTING THE BATTERY EARTH LEAD .
Refer to EVACUATING AND CHARGING CONDITIONING .
