Partly install the front wheel arch trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

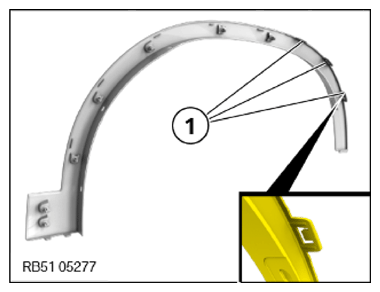

Check the latches (1) for damage and replace the front wheel arch trim if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

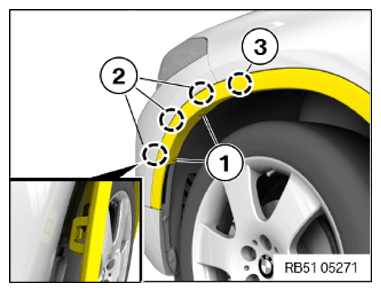

Clip the front wheel arch trim in the area of the bumper cover into the clip (3) and clip into the detents (2) .
Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
